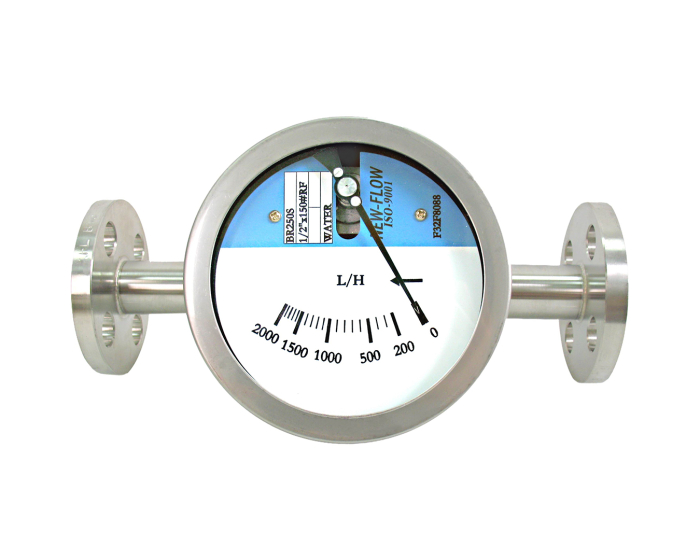

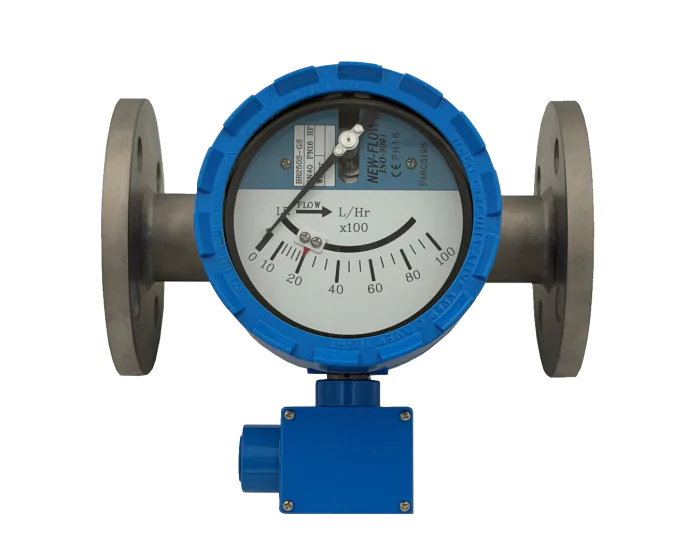

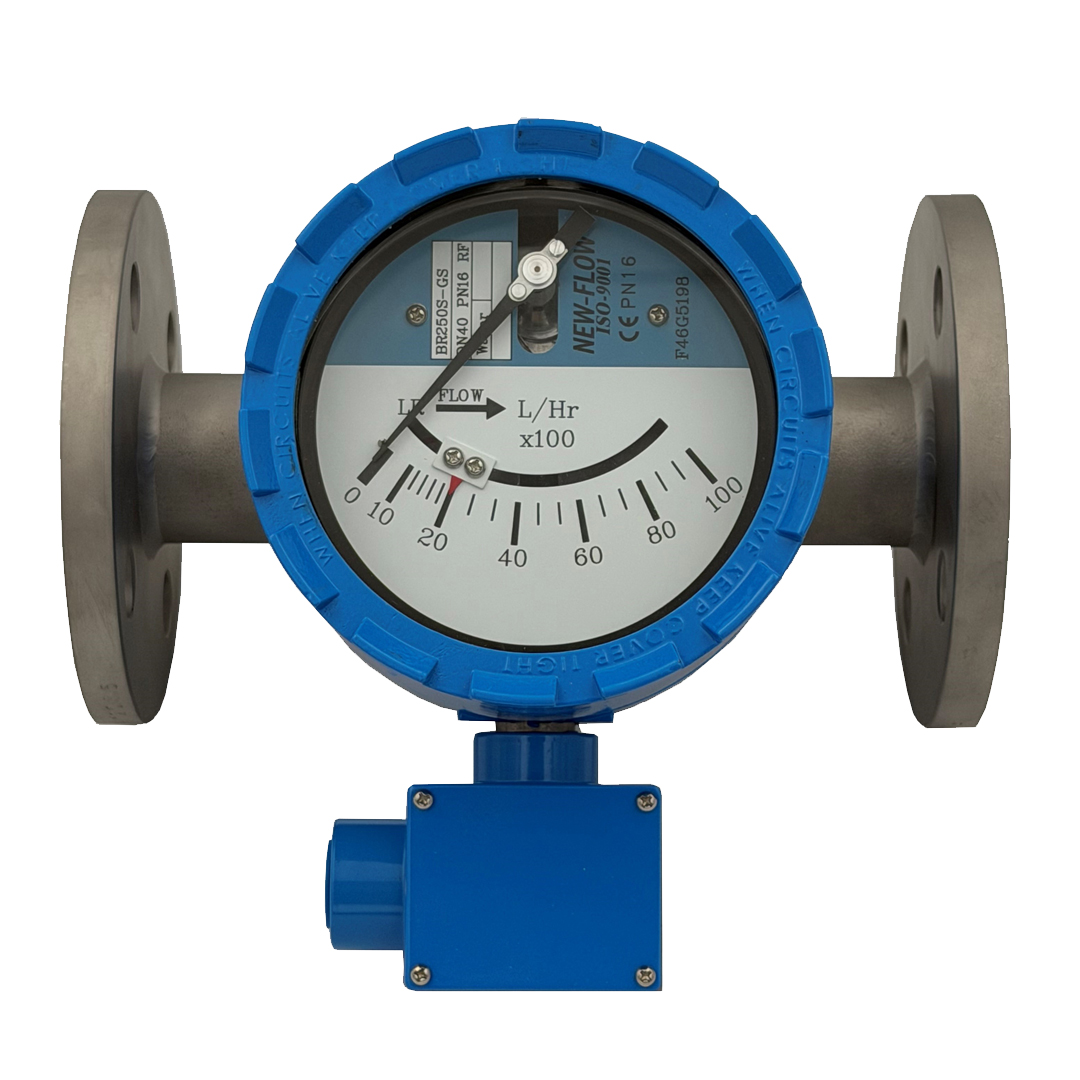

316 stainless steel body, float and spring, IP 66 aluminium case. Accuracy : 2,5%. PS : 16 bar -TS : -50 / +200°C. Horizontal mounting. Flanged attachment PN16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Dial (mm) | 130 |
| Switch type | Adjustable SPTD |
| DN | DN25 - 1'' |
| Face to Face (mm) | 250.0 |
| Fluid | Water |
| Protection index (IP) | IP 66 |
| Housing material | Stainless steel 316 |
| Body material | Stainless steel 316 (1.4401) |
| Accuracy | 0.0 |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -50 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category II |
| Flow rate range (L/h) | 400 / 4000 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel 316 (1.4401) DN25 - 1'' | 228602504 | S1013481 |
€769.27
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel 316 (1.4401) DN40 - 1''1/2 | 228604010 | S1013482 |
€885.41
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel 316 (1.4401) DN50 - 2'' | 228605020 | S1013483 |
€896.36
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel 316 (1.4401) DN65 - 2''1/2 | 228606530 | S1013484 |
€1,141.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel 316 (1.4401) DN80 - 3'' | 228608040 | S1013485 |
€1,290.17
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel 316 (1.4401) DN100 - 4'' | 228610060 | S1013486 |
€1,657.91
(excl. btw)
|
add to cart |
