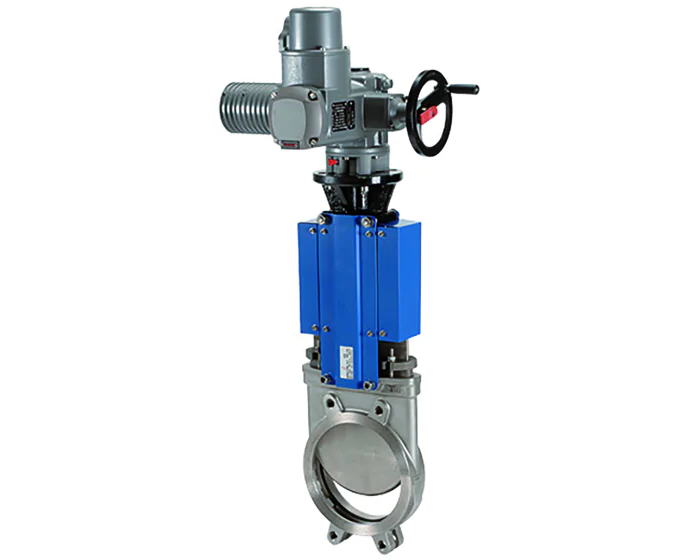

Knife valves with stainless steel body 1.4408, EPDM seat with electric actuator AUMA SA. PS : 10 bar - TS : 110°C. Unidirectional. Mounting between flanges PN10.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| DN | DN50 - 2'' |
| Duty service | S2 duty service - 15 min |
| Face to Face (mm) | 40.0 |
| Protection index (IP) | IP 68 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 316 |
| Body material | Stainless steel CF8M (1.4408) |
| Packing gland | PTFE + EPDM |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SA07.2 |
| Electric actuator series | SA series (AUMA) |
| Seats | EPDM |
| Operating time (s) | 36.0 |
| Voltage | 3-400 V |
| TS max (°C) | 110 |
| TS min (°C) | 0 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Stainless steel CF8M (1.4408) DN50 - 2'' 3-400 V | 445004027015 | S1004399 |
€3,275.16
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN65 - 2''1/2 3-400 V | 445005027015 | S1004400 |
€3,311.49
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN80 - 3'' 3-400 V | 445006027015 | S1004401 |
€3,405.66
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN100 - 4'' 3-400 V | 445007027015 | S1004402 |
€3,475.23
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN125 - 5'' 3-400 V | 445008027025 | S1004403 |
€4,138.46
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN150 - 6'' 3-400 V | 445009027025 | S1004404 |
€4,291.77
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN200 - 8'' 3-400 V | 445010027025 | S1004405 |
€4,678.20
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN250 - 10'' 3-400 V | 445011027025 | S1004406 |
€5,215.27
(excl. btw)
|
add to cart |
| Between flanges PN10 Stainless steel CF8M (1.4408) DN300 - 12'' 3-400 V | 445012027035 | S1004407 |
€7,109.40
(excl. btw)
|
add to cart |
