Name: Stainless steel CF8M Y-strainer 240 RF PN16 DN15
SKU: 11543
Price: 103.17142857143 EUR
Availability: InStock

Stainless steel CF8M Y-strainer 240 RF PN16 DN15

Stainless steel CF8M Y-strainer 240 RF PN16 DN15

€103.17 (excl. btw)

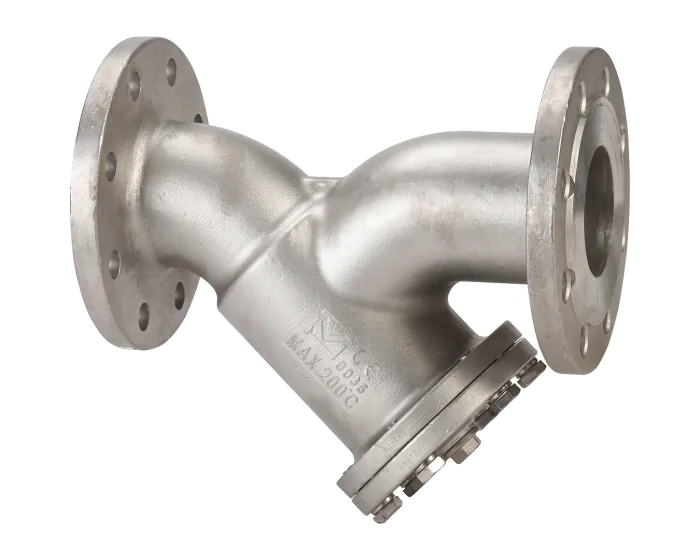

The 240 series Y-strainer consists of a stainless steel body, flanges RF PN16, a bolted bonnet with BSP threaded drain plug. It is suitable for food, chemical, pharmaceutical and petrochemical industries, and compressed air.

In stock Subject prior to sales
Categories : Filters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Other	Download
Other	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

PN16 flanged stainless-steel strainer Our reference 240 is a PN16 flanged stainless-steel strainer: body is in CF8M stainless steel, while screen is in F304 stainless steel. It is available in DN15 to DN200 sizes. This strainer boasts a number of technical characteristics: Its stainless-steel filter is removable for easy cleaning It is fitted with RF PN16 flanges It can be set in horizontal or vertical position with descendant fluid: the arrow indicating the flow direction must be respected The mesh can be 0.8mm to 3 mm thick It has a bolted bonnet with a threaded BSP draining cap It can withstand a maximum pressure service of 16 bar The operating temperatures range from -20 °C up to +200 °C Of course, our PN16 stainless-steel strainer can be used in a lot of different fields, such as chemical and pharmaceutical industries, petrochemical industries, hydraulic installations, or compressed air systems.

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
DN metric	15/21
Bonnet material	Stainless steel ASTM A351 CF8M
Mounting direction	Horizontal or vertical
Screen material	AISI 304 stainless steel
Construction standard	EN 12516-1
CE risk category	III Module H
EN face-to-face standard	EN 558 series 1
DIN face-to-face standard	DIN 3202-1 F1
Face to face standard	EN 558 Series 1. DIN 3202-1 F1. NF 29354
Flange type	RF
Accessories for flanges	Stainless steel ASTM A351 CF8M
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
ATEX compatible	Yes
DN	DN15 - 1/2''
Face to Face (mm)	130.0
Fluid	Acids
Gasket	PTFE
Kv (m³/h)	2.6
Body material	Stainless steel CF8M (1.4408)
PS (bar)	16
Connections	Flanged PN10/16
Screen (mesh)	8/10°
TS max (°C)	200
TS min (°C)	-20
ATEX zone	1 & 21. 2 & 22
Warranty period	2 years
CE	Yes
Filter design	Y

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
11544	Flanged PN10/16 Stainless steel CF8M (1.4408) DN15 - 1/2''	240015	S1011308	€103.17 (excl. btw)	add to cart
11545	Flanged PN10/16 Stainless steel CF8M (1.4408) DN20 - 3/4''	240020	S1011309	€113.34 (excl. btw)	add to cart
11546	Flanged PN10/16 Stainless steel CF8M (1.4408) DN25 - 1''	240025	S1011310	€142.87 (excl. btw)	add to cart
11547	Flanged PN10/16 Stainless steel CF8M (1.4408) DN32 - 1''1/4	240032	S1011311	€196.77 (excl. btw)	add to cart
11548	Flanged PN10/16 Stainless steel CF8M (1.4408) DN40 - 1''1/2	240040	S1011312	€227.90 (excl. btw)	add to cart
11549	Flanged PN10/16 Stainless steel CF8M (1.4408) DN50 - 2''	240050	S1011313	€293.67 (excl. btw)	add to cart
11550	Flanged PN10/16 Stainless steel CF8M (1.4408) DN65 - 2''1/2	240065	S1011314	€416.70 (excl. btw)	add to cart
11551	Flanged PN10/16 Stainless steel CF8M (1.4408) DN80 - 3''	240080	S1011315	€535.76 (excl. btw)	add to cart
11552	Flanged PN10/16 Stainless steel CF8M (1.4408) DN100 - 4''	240100	S1011316	€754.01 (excl. btw)	add to cart
11553	Flanged PN10/16 Stainless steel CF8M (1.4408) DN125 - 5''	240125	S1011317	€992.13 (excl. btw)	add to cart
11554	Flanged PN10/16 Stainless steel CF8M (1.4408) DN150 - 6''	240150	S1011318	€1,468.36 (excl. btw)	add to cart
11555	Flanged PN10/16 Stainless steel CF8M (1.4408) DN200 - 8''	240200	S1011319	€2,228.27 (excl. btw)	add to cart
