Name: Stainless steel CF8M wafer spring check valve 386
SKU: 11132
Price: 14.4 EUR
Availability: InStock

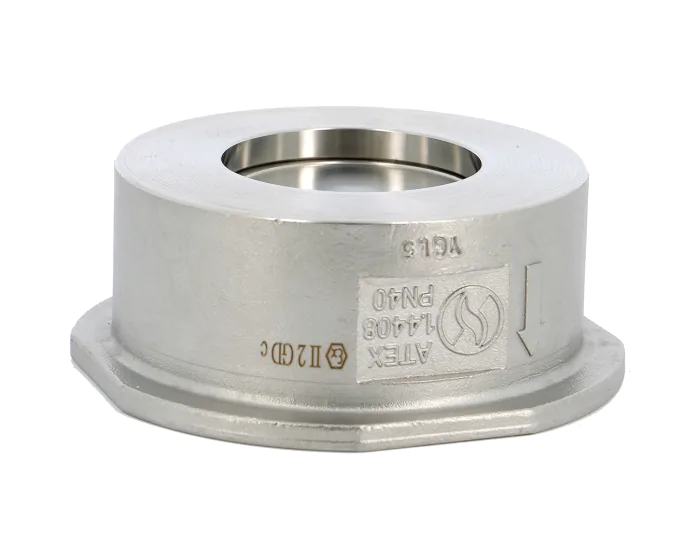

Stainless steel CF8M wafer spring check valve 386

€14.40 (excl. btw)

The 386 series wafer spring check valve is made of stainless steel body and disc, between flanges PN10/16/25/40, all position mounting, metal/metal tightness, for food, chemical, pharmaceutical, petrochemical and compressed air industries.

In stock Subject prior to sales
Categories : Terugslagkleppen

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Wafer spring disc check valve - all positions Our reference 386 is a full stainless-steel wafer type disc check valve for general purpose, industrial & HVAC applications. It is highly corrosion resistant and therefore is widely employed in hydraulic installations, compressed air systems and commonly used in the chemical, petrochemical and pharmaceutical industries. This type of spring-loaded disc check valve is also extensively used in steam installations where it prevents the back-flow of discharged condensate into the system. The 386 disc check valve offers a tight closure between the disc and its metal seat and allows opening at a small pressure deferential. The spring assistance permits the installation in either horizontal or vertical piping. It has a compact sandwich pattern which is space saving and lightweight and is designed to fit between flanges PN10/16/25/40 and ANSI 150. This device is able to withstand pressure up to 40 bar (except with steam, limited to 14 bar) and allows a wide range of working temperature from -20°C to +200°C. Our 386 non-return valve is available from stock in sizes comprised between DN 15 and DN 200.

Specification	Value
DN inches NPS	1/2''
Option certificate 3.1	Yes
Mounting direction	All positions
Construction standard	EN 12516-1
CE risk category	III Module H
EN face-to-face standard	EN 558 Series 49
DIN face-to-face standard	DIN 3202 K4
Tightness test standard	API 598. table 6
Closure member material	Stainless steel AISI 316
Application	Industry
ATEX atmosphere	Group II Cat. 2G/2D
ATEX compatible	Yes
DN	DN15 - 1/2''
Face to Face (mm)	16.0
Sealing	Metal / Metal
Fluid	Acids
Kv (m³/h)	2.1
Body material	Stainless steel CF8M (1.4408)
PS (bar)	40
Connections	Between flanges PN10/16/25/40
Seats	Stainless steel AISI 316
TS max (°C)	200
TS min (°C)	-20
ATEX zone	1 & 21. 2 & 22
Drinking water compatibility	Yes
CE	Yes
Obturator type	Spring

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
11133	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN15 - 1/2'' Between flanges PN10/16/25/40	386015	S1010930	€14.40 (excl. btw)	add to cart
11134	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN20 - 3/4'' Between flanges PN10/16/25/40	386020	S1010931	€18.47 (excl. btw)	add to cart
11135	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN25 - 1'' Between flanges PN10/16/25/40	386025	S1010932	€23.41 (excl. btw)	add to cart
11136	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN32 - 1''1/4 Between flanges PN10/16/25/40	386032	S1010933	€29.73 (excl. btw)	add to cart
11137	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN40 - 1''1/2 Between flanges PN10/16/25/40	386040	S1010934	€38.21 (excl. btw)	add to cart
11138	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN50 - 2'' Between flanges PN10/16/25/40	386050	S1010935	€54.41 (excl. btw)	add to cart
11139	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN65 - 2''1/2 Between flanges PN10/16/25/40	386065	S1010936	€81.46 (excl. btw)	add to cart
11140	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN80 - 3'' Between flanges PN10/16/25/40	386080	S1010937	€128.99 (excl. btw)	add to cart
11141	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN100 - 4'' Between flanges PN10/16/25/40	386100	S1010938	€185.41 (excl. btw)	add to cart
11142	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN125 - 5'' Between flanges PN40	386125	S1010939	€441.56 (excl. btw)	add to cart
11143	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN150 - 6'' Between flanges PN40	386150	S1010940	€705.63 (excl. btw)	add to cart
11144	Between flanges PN10/16/25/40 Stainless steel CF8M (1.4408) Spring DN200 - 8'' Between flanges PN40	386200	S1010941	€1,232.73 (excl. btw)	add to cart
