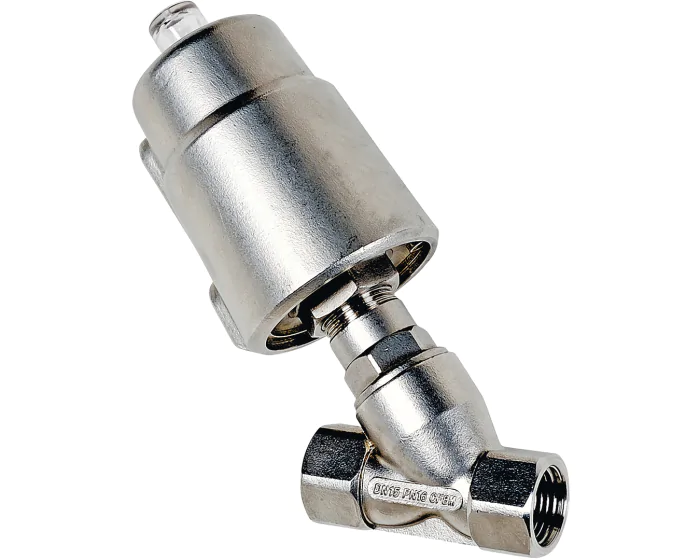

The HF Type 1434 pneumatic valve is a full bore, normally closed (NC), all stainless steel, slanted valve for automatic shut-off of fluid systems, prevents water hammer.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 16 |
| ATEX compatible | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 68.0 |
| Gasket | PTFE |
| Kv (m³/h) | 4.70 |
| Body material | Stainless steel CF8M (1.4408) |
| Bearing | PTFE |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | BSP FF |
| Control head | 50 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Flow entry | Below the seat |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) 50 DN15 - 1/2'' | 1434304 | S1001649 |
€108.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 50 DN20 - 3/4'' | 1434305 | S1001650 |
€114.24
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 63 DN25 - 1'' | 1434406 | S1001651 |
€154.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 63 DN32 - 1''1/4 | 1434407A | S1001652 |
€196.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 80 | 1434508A | S1001653 |
€255.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 80 | 1434509A | S1001654 |
€354.96
(excl. btw)
|
add to cart |
