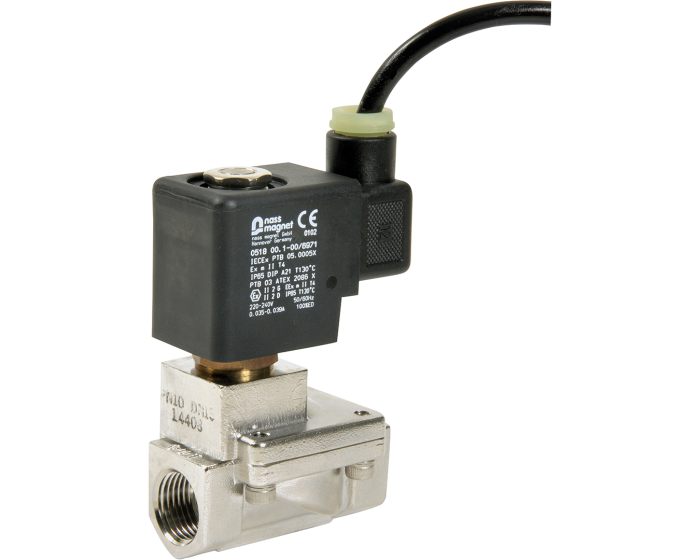

The solenoid valve type SPU 225-X is a 2/2-way stainless steel servo-assisted solenoid valve with normally closed (NC), for ATEX zones 1, 2, 21 and 22.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.5 |
| ATEX atmosphere | IIC |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 66.5 |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 2.82 |
| Body material | Stainless steel CF8M (1.4408) |
| Membrane material | FKM |
| ATEX protection mode | Ex mb |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) 230 V AC DN10 - 3/8'' | 080101 | S1005949 |
€282.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 230 V AC | 080102 | S1005950 |
€318.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 230 V AC | 080103 | S1005951 |
€385.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 230 V AC | 080104 | S1005952 |
€386.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 230 V AC | 080105 | S1005953 |
€392.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 230 V AC | 080106 | S1005954 |
€527.70
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 230 V AC | 080107 | S1005955 |
€547.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 24 V AC DN10 - 3/8'' | 080111 | S1005956 |
€282.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V AC | 080112 | S1005957 |
€318.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V AC | 080113 | S1005958 |
€385.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24 V AC | 080114 | S1005959 |
€386.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 24 V AC | 080115 | S1005960 |
€392.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 24 V AC | 080116 | S1005961 |
€527.70
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 24 V AC | 080117 | S1005962 |
€547.83
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 24 V DC DN10 - 3/8'' | 080151 | S1005963 |
€282.86
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V DC | 080152 | S1005964 |
€318.61
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V DC | 080153 | S1005965 |
€385.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' 24 V DC | 080154 | S1005966 |
€386.97
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN32 - 1''1/4 24 V DC | 080155 | S1005967 |
€392.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN40 - 1''1/2 24 V DC | 080156 | S1005968 |
€527.70
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN50 - 2'' 24 V DC | 080157 | S1005969 |
€547.83
(excl. btw)
|
add to cart |
