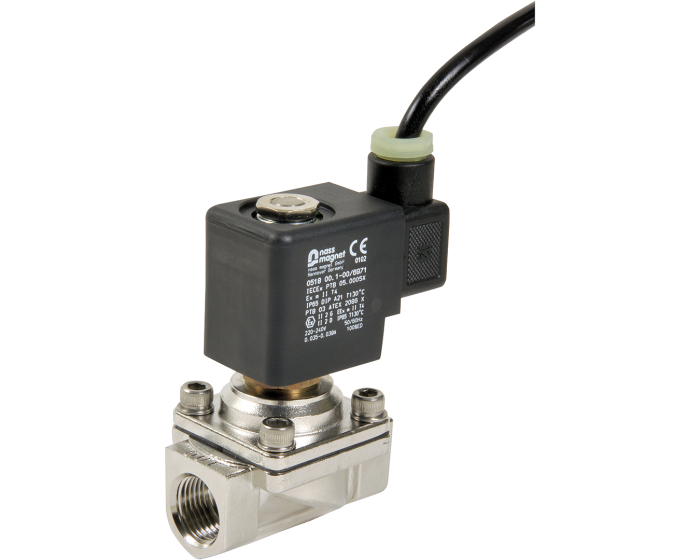

The solenoid valve type SPU 220-X is a normally closed (NC) 2/2-way direct acting stainless steel valve for ATEX zones 1, 2, 21 and 22.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 7 |
| Minimum delta P (bar) | 0 |
| ATEX atmosphere | IIC |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 66.5 |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 3.26 |
| Body material | Stainless steel CF8M (1.4408) |
| Membrane material | FKM |
| ATEX protection mode | Ex mb |
| Position | Normally closed |
| PS (bar) | 7 |
| Connections | BSP FF |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 230 V AC | 081102 | S1005831 |
€342.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 230 V AC | 081103 | S1005832 |
€460.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V AC | 081112 | S1005833 |
€342.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V AC | 081113 | S1005834 |
€460.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' 24 V DC | 081152 | S1005835 |
€342.00
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' 24 V DC | 081153 | S1005836 |
€460.41
(excl. btw)
|
add to cart |
