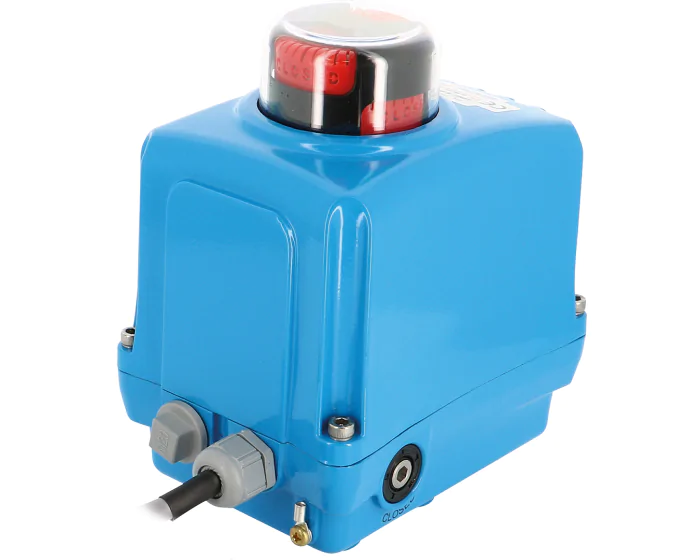

The Electric actuator 50 Nm capacitor return for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
Wafer type butterfly valve Body in nodular iron GGG-50 Disc in stainless steel AISI 316 Seat in Buna N Max. working pressure: 16 bar (DN 32 - DN 300), 10 bar (DN 350 - DN 1000) Face to face: ISO 5752 Connection: flange PN 10, PN 16 and ANSI 150 (DN 32 - DN 400); PN 10 (DN 450 - DN 1000) ISO mounting flange for direct mount With pneumatic actuator spring return type AS, spring to close, air to open Equipped with: Solenoid valve fig. MNAMI24 - 24 VDC, EExia II CT6, Namur connection for direct mounting
| Specification | Value |
|---|---|
| Square, star (mm) | 14 |
| Manual override | By key |
| Torque (Nm) | 50 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F3/F5/F7 |
| Power (W) | 120 |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | SA05-SCP |
| Electric actuator series | SA/NA series |
| Operating time (s) | 8 |
| Voltage | 230 V AC |
| TS max (°C) | 70 |
| TS min (°C) | -20 |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC SA05-SCP | 023065 | S1004448 |
€1,294.19
(excl. btw)
|
add to cart |
| 24 V DC SA05-SCP | 023066 | S1004449 |
€1,294.19
(excl. btw)
|
add to cart |
