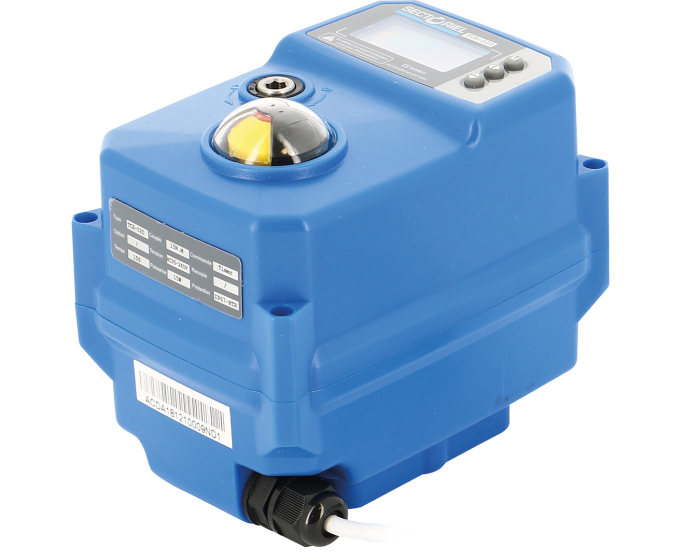

Regulation electric actuator with capacitor return TCR-T-KT32

Specifications of TCR-02T electric actuators The TCR-02-T-KT electric actuators feature a compact design with a 90° operating angle (±2°). They include an ISO 5211 pad and star connection . The ABS plastic enclosure and steel reducing box ensure durability and efficiency. They operate in temperatures from -20°C to +60°C . Duty cycle is S4 (50% operational time), except for TCR20 and TCR40 models which have an S3 duty cycle (85% operational time). Available with a torque from 15Nm to 90Nm , they support voltages of 95-265V AC/DC , and 24V AC/DC Focus on the regulation function It features a double proportional control function , using a 4-20mA input signal for precise valve positioning, along with a super-capacitor to ensure the valve closes in the event of a power failure. This dual functionality provides both accuracy and reliability, making it suitable for critical applications. Standard equipment of TCR electric actuators The TCR electric actuators come with adjustable limit switches and 2 auxiliary limit switches. They feature thermal protection , a 3D position indicator , a manual override by hex key, and regulated 2-3 W anti-condensation resistor . These actuators are equipped with an IP67 leak-tightness rating , making them suitable for indoor use and potentially for outdoor use under proper shelter. Supporting parallel installation , the TCR-N actuators allow multiple units to operate simultaneously, which is crucial for systems requiring synchronized valve movements. Additionally, they offer manual control with a key, providing a necessary override option for maintenance or in case of power failure.
