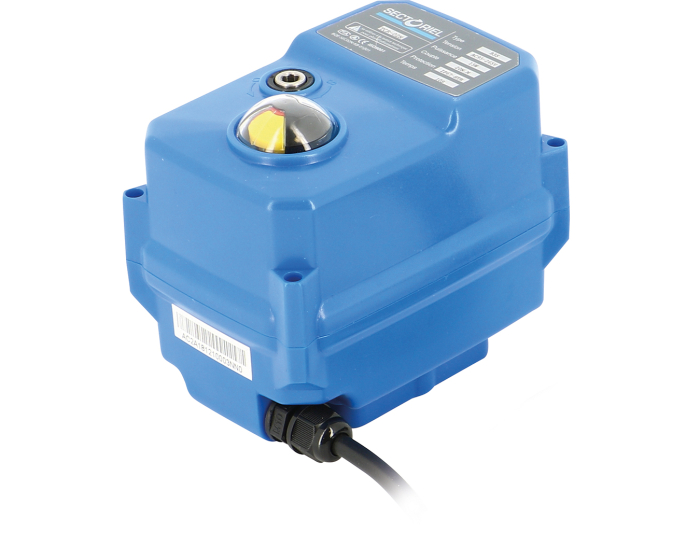

Quick acting electric actuator for quarter-turn valves, very compact and multi-voltage, with anti-condensation heater regulated as standard, parallel mounting possible. Torque from 15 to 110 Nm. ABS enclosure and cover with IP67 protection.
Three piece ball valve with floating ball Body in stainless steel ASTM A351 Gr. CF8M Ball in stainless steel AISI 316, with drilling pressure relief hole Seats in PTFE + 15% glassfibre Max. working pressure: 138 bar (DN 8 to DN 25), 103 bar (DN 32 to DN 50), 69 bar (DN 65 to DN 100) Connection: BSP threaded ISO mounting flange for direct mount With lever in stainless steel and locking device
| Specification | Value |
|---|---|
| Square, star (mm) | 11 |
| Manual override | By key |
| Torque (Nm) | 15 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| ISO pad 5211 | F3/F5 |
| Power (W) | 25 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02NH |
| Electric actuator series | TCR Series |
| Operating time (s) | 6.0 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 95-265 V AC/DC 15 | 024130 | S1005514 |
€287.53
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 50 | 024330 | S1005516 |
€316.69
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 110 | 024630 | S1005517 |
€441.71
(excl. btw)
|
add to cart |
| 24 V AC/DC 110 | 024631 | S1005518 |
€441.71
(excl. btw)
|
add to cart |
