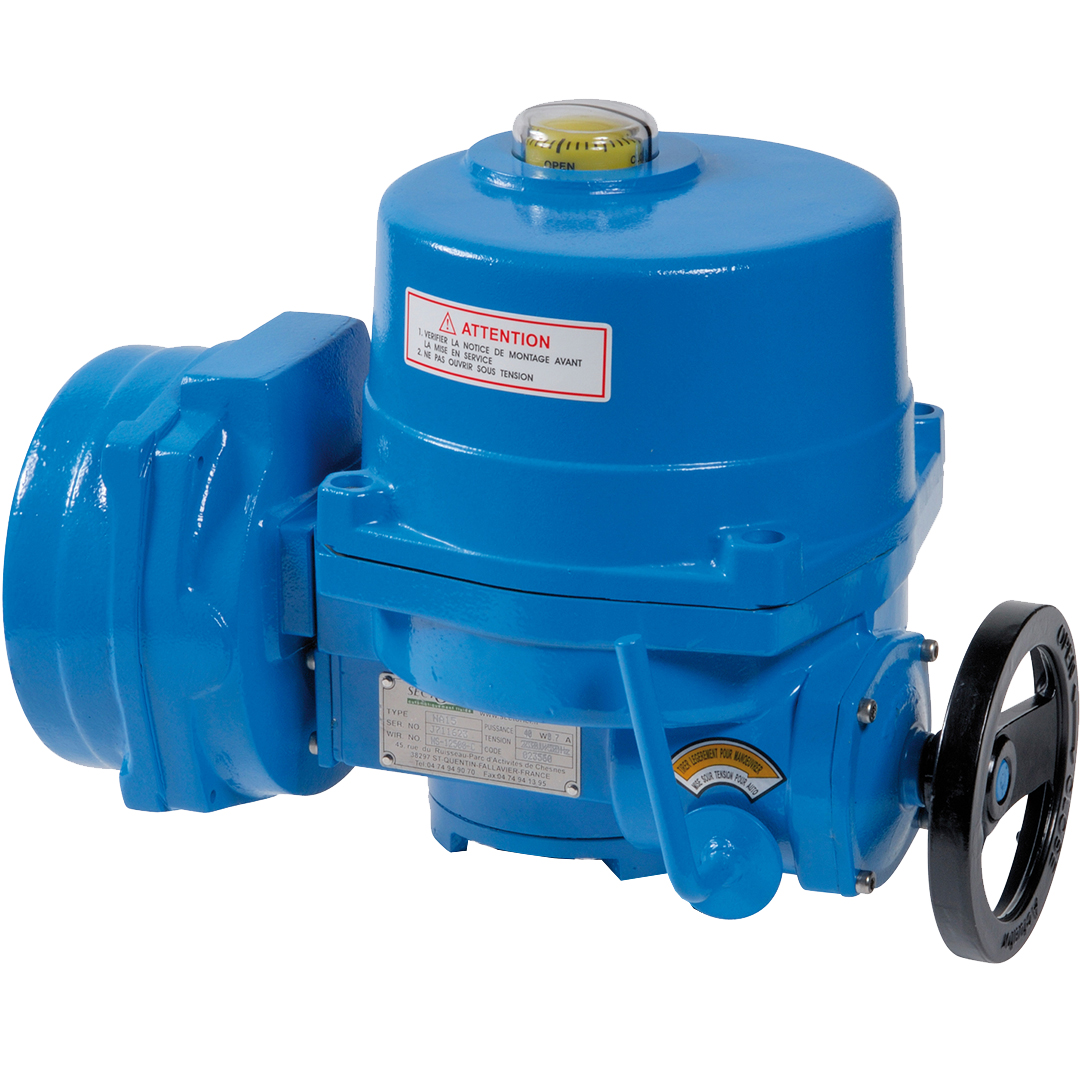

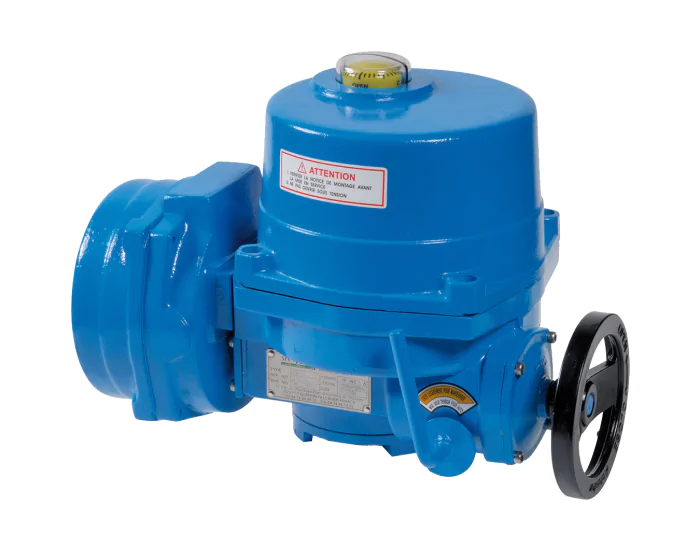

The electric actuator for 1/4 turn valve. Aluminium enclosure and cover with IP67 protection. Regulation card: 4-20 mA, 0-10 V.
Wafer type butterfly valve Body in nodular iron GGG-50 Disc in stainless steel AISI 316 Seat in EPDM Max. working pressure: 16 bar (DN 32 - DN 300), 10 bar (DN 350 - DN 1000) Face to face: ISO 5752 Connection: flange PN 10, PN 16 and ANSI 150 (DN 32 - DN 400); PN 10 (DN 450 - DN 1000) ISO mounting flange for direct mount With pneumatic actuator spring return type PE, spring to close, air to open Equipped with: Electropneumatic positioner, single acting - 4/20 mA - VDI/VDE 90° mounting set 0NG10-0AA0 - 4/20mA - with alarm module
| Specification | Value |
|---|---|
| Square, star (mm) | 17 |
| Manual override | By handwheel |
| Torque (Nm) | 90 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F7 |
| Power (W) | 25 |
| Regulation | 4-20 mA |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | NA 09 PCU |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 90 | 023550 | S1005210 |
€1,304.61
(excl. btw)
|
add to cart |
| 150 | 023560 | S1005211 |
€1,495.90
(excl. btw)
|
add to cart |
| 280 | 023580 | S1005212 |
€1,497.51
(excl. btw)
|
add to cart |
