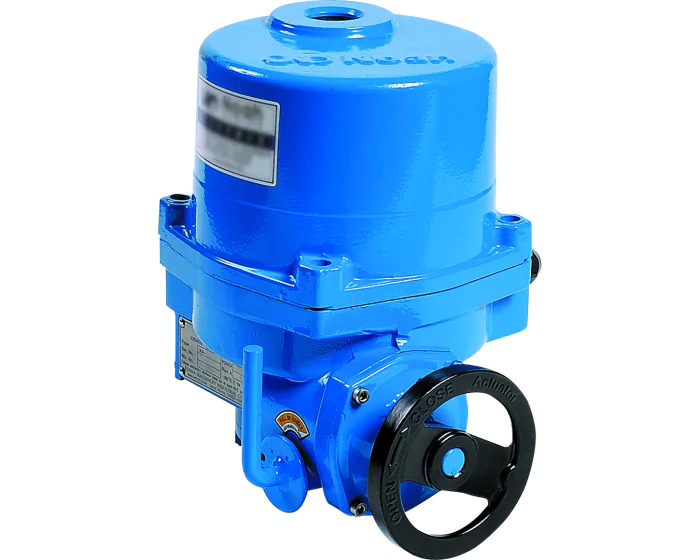

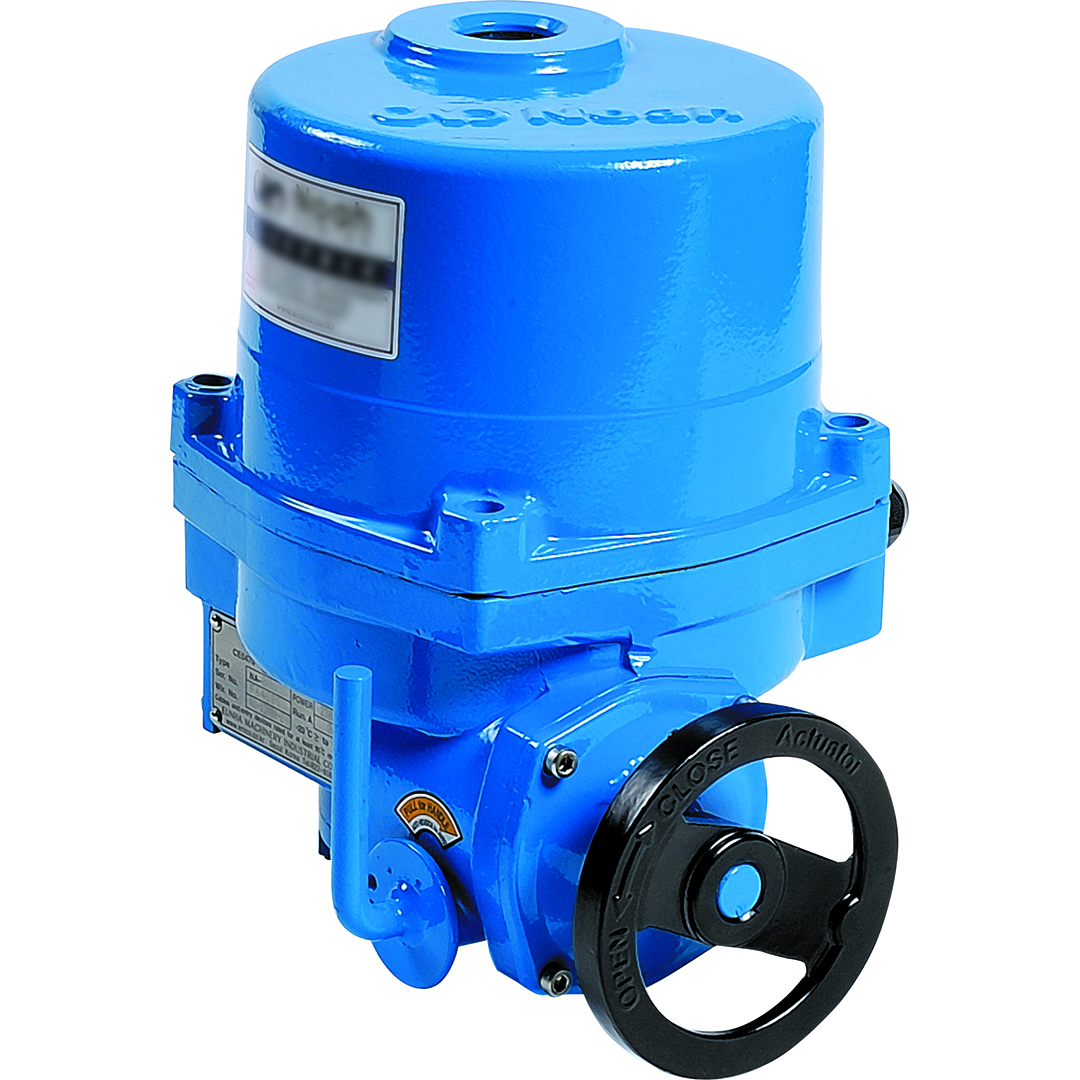

The ATEX electric actuator for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%. ATEX II 2G EExd IIB T4 certification.
| Specification | Value |
|---|---|
| ATEX atmosphere | IIB |
| Square, star (mm) | 17 |
| Manual override | By handwheel |
| Torque (Nm) | 60 |
| Declutchable | Yes |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| ATEX protection mode | Ex d |
| ISO pad 5211 | F7 |
| Power (W) | 15 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NAX 06 |
| Electric actuator series | SA-X/NA-X ATEX series |
| Operating time (s) | 17 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 60 | 023320 | S1005033 |
€897.84
(excl. btw)
|
add to cart |
| 90 | 023330 | S1005034 |
€931.04
(excl. btw)
|
add to cart |
| 150 | 023340 | S1005035 |
€1,163.20
(excl. btw)
|
add to cart |
| 280 | 023360 | S1005036 |
€1,275.71
(excl. btw)
|
add to cart |
| 380 | 023370 | S1005037 |
€1,470.29
(excl. btw)
|
add to cart |
| 600 | 023390 | S1005038 |
€1,728.33
(excl. btw)
|
add to cart |
