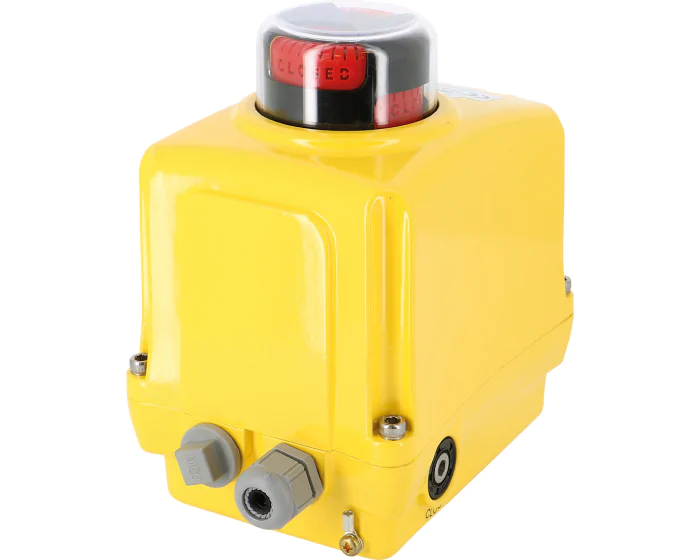

The Electric actuator 50 Nm for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
Flanged ball valve with floating ball Body in stainless steel 1.4408 Ball in stainless steel A 351 Gr. CF8M Seats in PTFE Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200) Face to face: EN558-1 series 27 Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200) ISO mounting flange Fire safe according to ISO 10497 With pneumatic actuator double acting type PD Equipped with: Inductive proximity switches fig. SD33XX, type P&F NBN3-F31-E8-V18, 3 wire Nominal voltage: 10 ~ 30 V. Connection: V18-connector 5/2 - 3/2 Festo solenoid valve type NVF3-MOH-5/2-K-1/4-EX - 24 VDC
| Specification | Value |
|---|---|
| Square, star (mm) | 14 |
| Manual override | By key |
| Torque (Nm) | 50 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F3/F5/F7 |
| Power (W) | 6 |
| Regulation | 4-20 mA |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | Regulation |
| Electric actuator type | SA05 PCU |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17 |
| Voltage | 230 V AC |
| TS max (°C) | 70 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC SA05 PCU | 023050 | S1004327 |
€922.90
(excl. btw)
|
add to cart |
| 24 V AC/DC SA05 PCU | 023051 | S1004328 |
€922.90
(excl. btw)
|
add to cart |
| 24 V AC/DC SA 05X PCU | 023312 | S1004329 |
€1,081.20
(excl. btw)
|
add to cart |
| 230 V AC SA 05X PCU | 023313 | S1004330 |
€1,081.20
(excl. btw)
|
add to cart |
