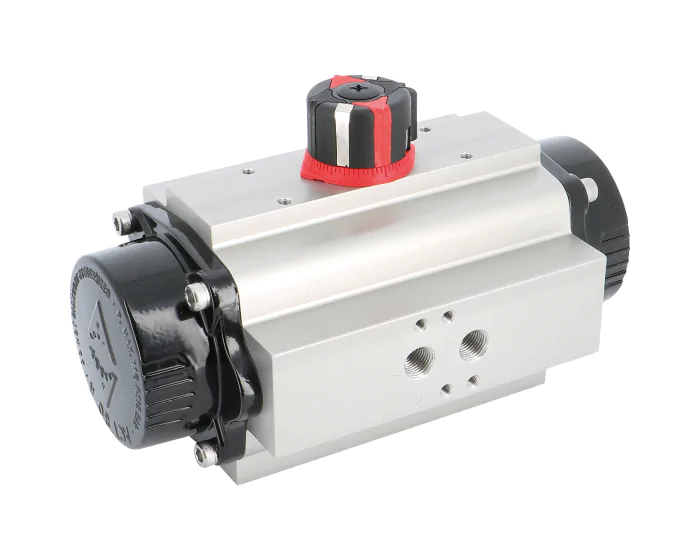

This normally closed Actreg actuator features spring return operation with 5 bar air supply. Available in multiple torque ratings, it ensures reliable clockwise closing and ISO/NAMUR 2 interface compatibility.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| Torque (Nm) | 24 |
| Body material | Aluminium |
| ATEX protection mode | Ex c |
| ISO pad 5211 | F5 |
| PS (bar) | 5 |
| TS max (°C) | 100 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Spring return |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| Spring closing torque (Nm) | 12 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 12 | 016201 | S1001935 |
€94.84
(excl. btw)
|
add to cart |
| Aluminium 22 | 016202 | S1001936 |
€147.90
(excl. btw)
|
add to cart |
| Aluminium 32 | 016203 | S1001937 |
€160.59
(excl. btw)
|
add to cart |
| Aluminium 52 | 016204 | S1001938 |
€227.97
(excl. btw)
|
add to cart |
| Aluminium 85 | 016205 | S1001939 |
€312.76
(excl. btw)
|
add to cart |
| Aluminium 126 | 016206 | S1001940 |
€405.46
(excl. btw)
|
add to cart |
