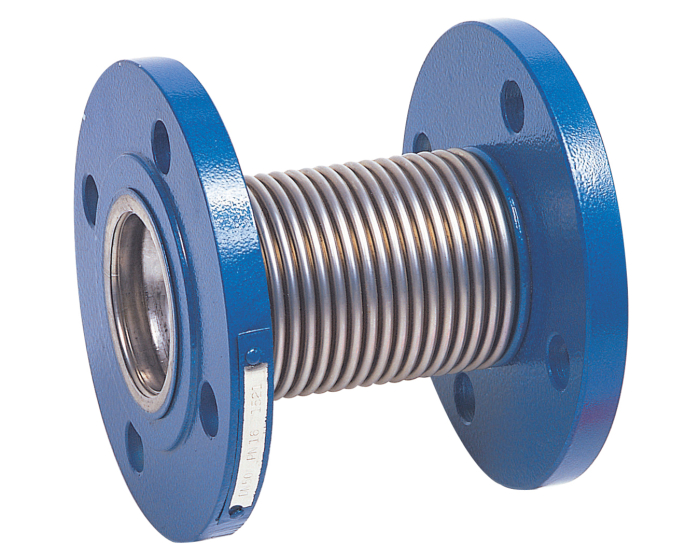

The metal expansion joint series 1521, with flanged bellow PN16, rotating steel flanges, stainless steel hydroformed bellow for common fluids compatible.
| Specification | Value |
|---|---|
| DN inches NPS | 1'' |
| Construction standard | EN 14917 |
| CE risk category | II Module A2-C2 |
| Steam | Yes |
| Flange or fitting material | Carbon steel |
| Application | Industry |
| DN | DN25 - 1'' |
| Face to Face (mm) | 105.0 |
| Fluid | Steam |
| Body material | Stainless steel AISI 321 |
| PS (bar) | 16 |
| Connections | With rotating flanges PN10/16 |
| TS max (°C) | 300 |
| TS min (°C) | -20 |
| Bellow | Stainless steel |
| CE | Yes |
| Axial movement (mm) | 11 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| With rotating flanges PN10/16 Stainless steel AISI 321 DN25 - 1'' | 1521025 | S1011517 |
€80.99
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN32 - 1''1/4 | 1521032 | S1011518 |
€90.83
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN40 - 1''1/2 | 1521040 | S1011519 |
€98.44
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN50 - 2'' | 1521050 | S1011520 |
€116.33
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN65 - 2''1/2 | 1521065 | S1011521 |
€131.07
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN80 - 3'' | 1521080 | S1011522 |
€149.79
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN100 - 4'' | 1521100 | S1011523 |
€175.54
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN125 - 5'' | 1521125 | S1011524 |
€209.61
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN150 - 6'' | 1521150 | S1011525 |
€272.37
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN200 - 8'' | 1521200 | S1011526 |
€353.40
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Stainless steel AISI 321 DN250 - 10'' | 1521250 | S1011527 |
€465.04
(excl. btw)
|
add to cart |
