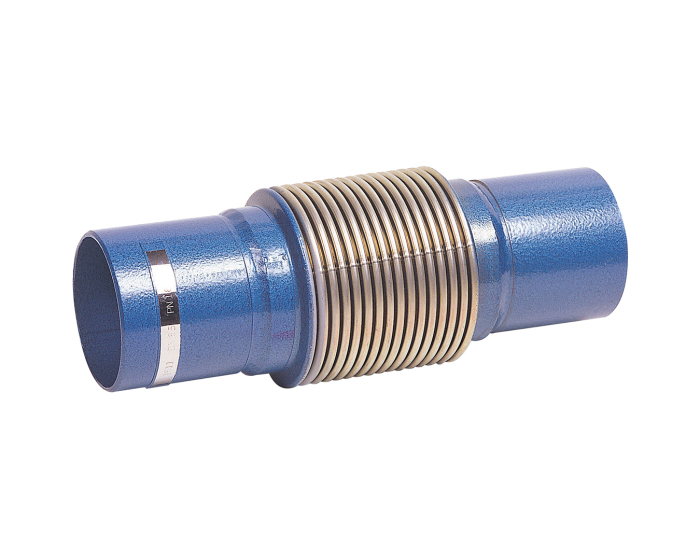

The metal expansion joint series 1511, stainless steel bellow model, BW welding with steel nipples, PN16, axial displacement for common fluids compatible.
| Specification | Value |
|---|---|
| DN inches NPS | 1'' |
| Construction standard | EN 14917 |
| CE risk category | II Module A2-C2 |
| Steam | Yes |
| Flange or fitting material | Carbon steel |
| Application | Industry |
| DN | DN25 - 1'' |
| Face to Face (mm) | 185.0 |
| Fluid | Steam |
| Body material | Stainless steel AISI 321 |
| PS (bar) | 16 |
| Connections | Welding BW |
| TS max (°C) | 300 |
| TS min (°C) | -20 |
| Bellow | Stainless steel |
| CE | Yes |
| Axial movement (mm) | 11 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding BW Stainless steel AISI 321 DN25 - 1'' | 1511025 | S1011479 |
€60.61
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN32 - 1''1/4 | 1511032 | S1011480 |
€65.54
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN40 - 1''1/2 | 1511040 | S1011481 |
€67.86
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN50 - 2'' | 1511050 | S1011482 |
€70.91
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN65 - 2''1/2 | 1511065 | S1011483 |
€103.69
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN80 - 3'' | 1511080 | S1011484 |
€116.33
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN100 - 4'' | 1511100 | S1011485 |
€134.10
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN125 - 5'' | 1511125 | S1011486 |
€156.90
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN150 - 6'' | 1511150 | S1011487 |
€187.26
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN200 - 8'' | 1511200 | S1011488 |
€244.54
(excl. btw)
|
add to cart |
| Welding BW Stainless steel AISI 321 DN250 - 10'' | 1511250 | S1011489 |
€310.41
(excl. btw)
|
add to cart |
