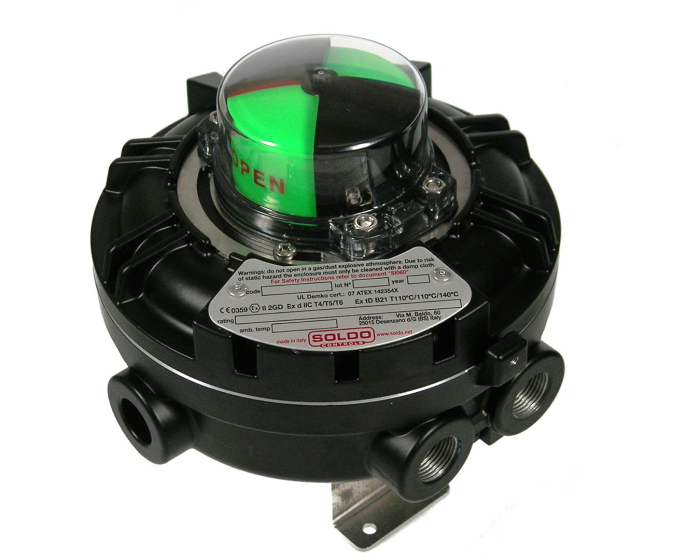

ATEX II 2 G/D Ex d IIC T6 certified enclosure, polyester coated aluminium body and cap, stainless steel shaft, adjustable 3D position indicator. IP 68. 2 inputs 1/2'' NPT or M25x1,5. 2 SPDT mechanical switches or inductive detectors.
| Specification | Value |
|---|---|
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| Switch type | 2 silver plated mechanical contacts (SPDT) |
| Protection index (IP) | IP 68 |
| Body material | Aluminium |
| ATEX protection mode | Ex d |
| Surface temperature | T4/T6 |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| TS min (°C) | -20 |
| ATEX zone | 1. 2. 21. 22 |
| Warranty period | 1 year |
| Product | Reference |
| Product Limit switch box SY IP68 anti-explosion IIC 2 SPDT mechanical switches | Reference 0475012 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 2 silver plated mechanical contacts (SPDT) | 0475012 | S1000817 |
€527.21
(excl. btw)
|
add to cart |
