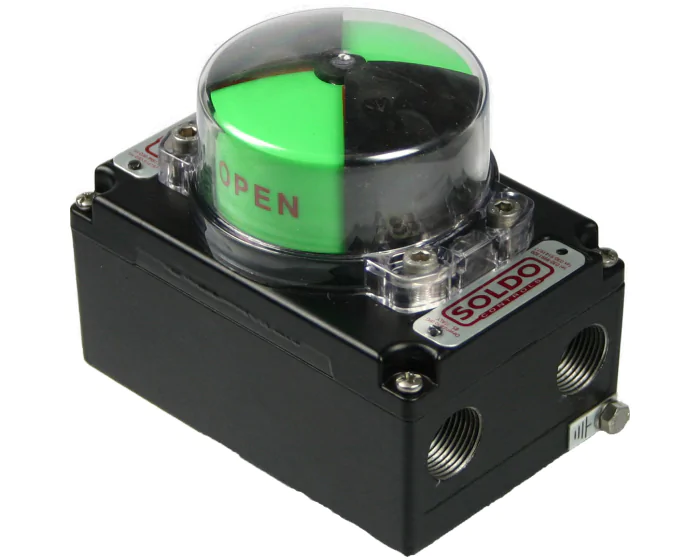

Limit switch box SF-3GD IP65 ATEX 2 SPDT mechanical switches
| Specification | Value |
|---|---|
| ATEX atmosphere | IIC |
| ATEX compatible | Yes |
| Switch type | 2 inductive 3-wire PNP P+F NBB2 V3E2 |
| Protection index (IP) | IP 65 |
| Body material | Aluminium |
| ATEX protection mode | Ex nA |
| Surface temperature | T6 |
| Voltage | 10-30 V DC |
| TS max (°C) | 41 |
| TS min (°C) | -20 |
| ATEX zone | 2. 22 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Aluminium 2 inductive 3-wire PNP P+F NBB2 V3E2 | 0476010 | S1001122 |
€496.74
(excl. btw)
|
add to cart |
| Aluminium 2 silver plated mechanical contacts (SPDT) | 0476012 | S1001123 |
€211.86
(excl. btw)
|
add to cart |
