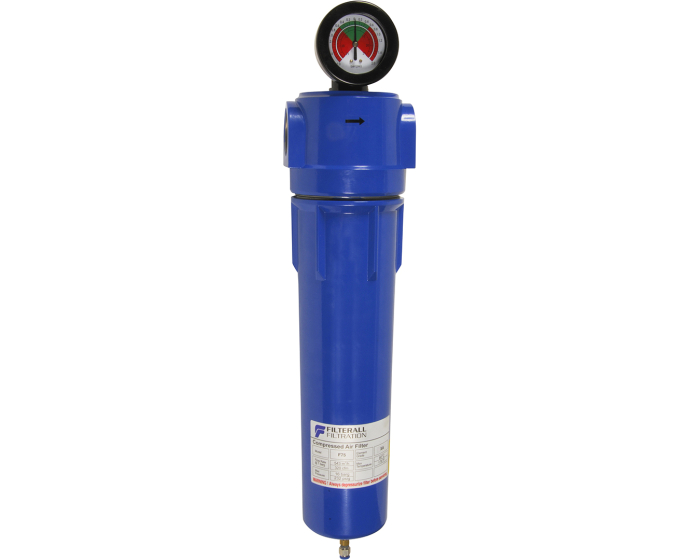

Filter with cartridge S-AIR - class 1 - borosilicate
€181.24
(excl. btw)
S-AIR network filter, XA sub-micron filtration, aluminium body, epoxy paint. PS: 16 bar - TS: +5 / +50°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum flow rate (Nm³/h) | 82.0 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 87.0 |
| Filtration (µm) | 0.01 |
| Fluid | Compressed air |
| Filtration grade | Submicronic XA |
| Body material | Aluminium |
| Tank mounting | Vertical |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 50 |
| TS min (°C) | 5 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN15 - 1/2'' 82.0 | 178XA02 | S1007701 |
€181.24
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN20 - 3/4'' 127.0 | 178XA03 | S1007702 |
€199.84
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' 212.0 | 178XA04 | S1007703 |
€251.36
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN40 - 1''1/2 549.0 | 178XA06 | S1007704 |
€297.43
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN50 - 2'' 828.0 | 178XA07 | S1007705 |
€513.54
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN50 - 2'' 1070.0 | 178XA08 | S1007706 |
€612.00
(excl. btw)
|
add to cart |
