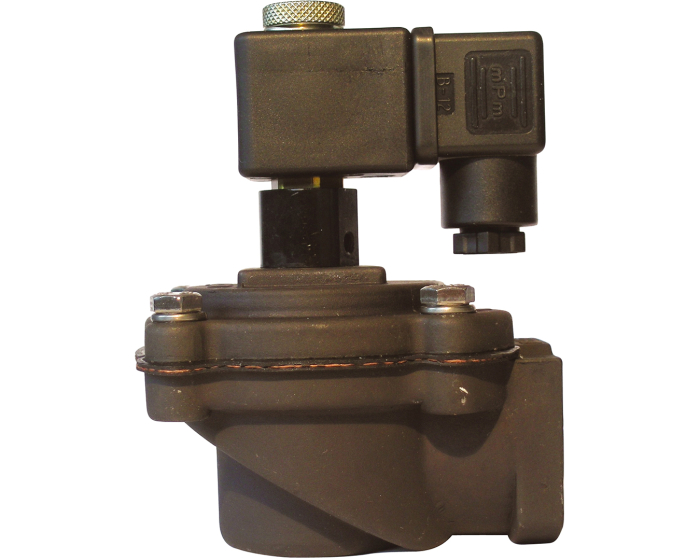

The VNP solenoid valve is an instant action aluminium solenoid valve, specially designed for baghouse cleaning.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 7.5 |
| Minimum delta P (bar) | 0.5 |
| Connector | T30 |
| DN | DN20 - 3/4'' |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 10.00 |
| Body material | Aluminium |
| Membrane material | NBR |
| PS (bar) | 7.5 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 120 |
| TS min (°C) | -20 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Type | ECM 93 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Aluminium DN20 - 3/4'' 230 V AC ECM 93 | 089303 | S1006001 |
€111.41
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' 230 V AC VNP | 089304 | S1006002 |
€126.70
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN40 - 1''1/2 230 V AC VNP | 089305 | S1006003 |
€197.97
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN40 - 1''1/2 230 V AC VNP | 089306 | S1006004 |
€246.16
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN20 - 3/4'' 24 V AC ECM 93 | 089313 | S1006005 |
€111.41
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN25 - 1'' 24 V AC VNP | 089314 | S1006006 |
€126.70
(excl. btw)
|
add to cart |
| BSP FF Aluminium DN40 - 1''1/2 24 V AC VNP | 089315 | S1006007 |
€197.97
(excl. btw)
|
add to cart |
