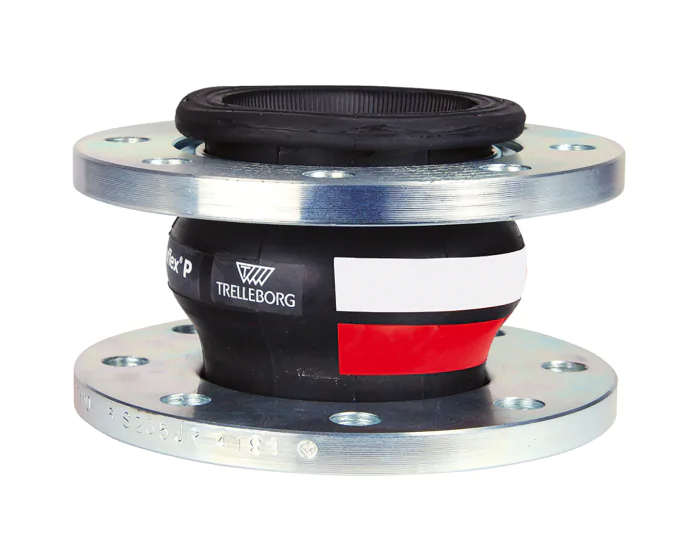

The Teguflex industrial expansion joint series 1561 red, white, EPDM, ACS certified, rotating flanges, carbon steel retaining ring, for drinking water.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/4 |
| CE risk category | III Module H |
| Brand | TRELLEBORG |
| Flange or fitting material | Zinc plated bichromate steel S235 |
| Application | Expansion/Vibration Noise absorption |
| DN | DN32 - 1''1/4 |
| Face to Face (mm) | 130.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Body material | EPDM ACS |
| PS (bar) | 16 |
| Connections | With rotating flanges PN10/16 |
| TS max (°C) | 90 |
| TS min (°C) | -25 |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| With rotating flanges PN10/16 EPDM ACS DN32 - 1''1/4 Zinc plated bichromate steel S235 | 1561032 | S1011506 |
€307.54
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN40 - 1''1/2 Zinc plated bichromate steel S235 | 1561040 | S1011507 |
€317.67
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN50 - 2'' Zinc plated bichromate steel S235 | 1561050 | S1011508 |
€324.30
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN65 - 2''1/2 Zinc plated bichromate steel S235 | 1561065 | S1011509 |
€352.90
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN80 - 3'' Zinc plated bichromate steel S235 | 1561080 | S1011510 |
€375.84
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN100 - 4'' Zinc plated bichromate steel S235 | 1561100 | S1011511 |
€408.24
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN125 - 5'' Zinc plated bichromate steel S235 | 1561125 | S1011512 |
€477.36
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN150 - 6'' Zinc plated bichromate steel S235 | 1561150 | S1011513 |
€563.56
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN200 - 8'' Zinc plated bichromate steel S235 | 1561200 | S1011514 |
€637.33
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN250 - 10'' Zinc plated bichromate steel S235 | 1561250 | S1011515 |
€997.49
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 EPDM ACS DN300 - 12'' Zinc plated bichromate steel S235 | 1561300 | S1011516 |
€1,258.47
(excl. btw)
|
add to cart |
