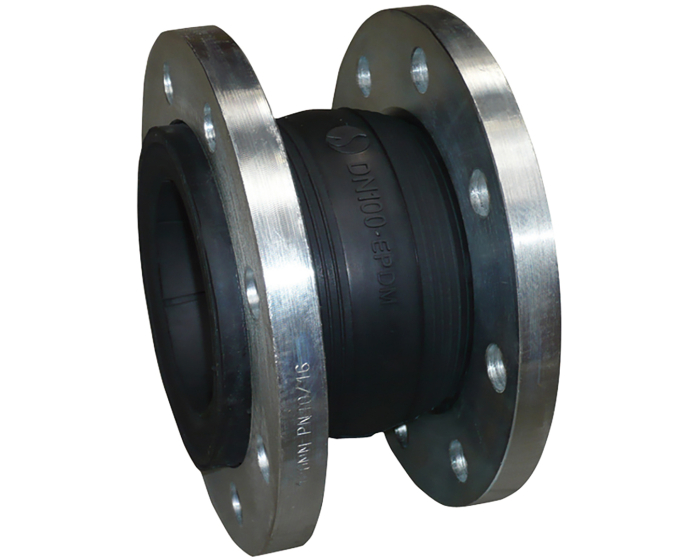

This expansion joint series 1502, elastomeric, with flanges in galvanised steel, single bellow EPDM, hardened steel cable, flanged attachment PN16 for water supply and distribution networks.
| Specification | Value |
|---|---|
| DN inches NPS | 8'' |
| Flange or fitting material | Electro-zinc plated steel |
| Application | Water supply / Irrigation / Watering |
| DN | DN200 - 8'' |
| Face to Face (mm) | 205.0 |
| Fluid | Cold water |
| Body material | EPDM |
| PS (bar) | 16 |
| Connections | With rotating flanges PN16 |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| With rotating flanges PN16 EPDM DN200 - 8'' | 1502200 | S1011539 |
€145.71
(excl. btw)
|
add to cart |
| With rotating flanges PN16 EPDM DN250 - 10'' | 1502250 | S1011540 |
€205.39
(excl. btw)
|
add to cart |
| With rotating flanges PN16 EPDM DN300 - 12'' | 1502300 | S1011541 |
€250.99
(excl. btw)
|
add to cart |
