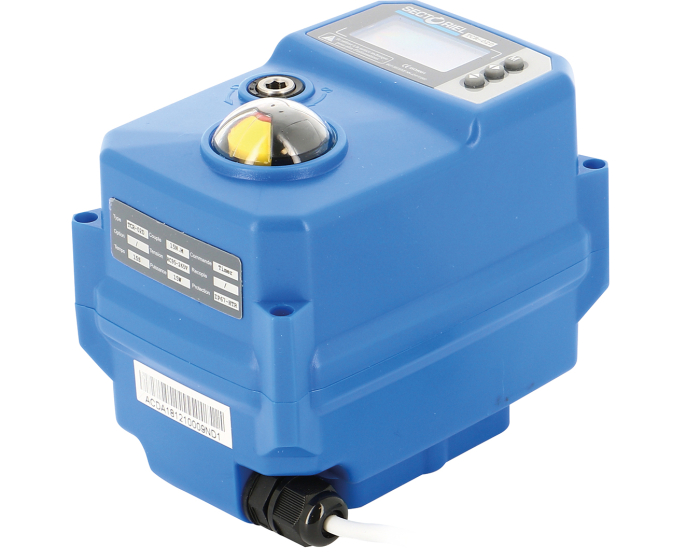

Electric actuator with timer for 1/4 turn valve, very compact and multi-voltage with regulated anti-condensation heater, parallel mounting possible. Torque of 20 Nm. ABS enclosure and cover with IP67 protection.
Flanged ball valve with floating ball Body in steel A216 Gr. WCB Ball in stainless steel A 351 Gr. CF8M Seats in PTFE Max. working pressure: 50 bar Face to face: ASME B16.10 long pattern Connection: flanged ANSI 300 Lbs ISO mounting flange Fire safe according to ISO 10497 With lever in nodular iron (free stem from 8'') With C5-M coating With pneumatic actuator spring return type AS, spring to close, air to open (+ epoxy)
| Specification | Value |
|---|---|
| Square, star (mm) | 11 |
| Manual override | By key |
| Torque (Nm) | 20 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| ISO pad 5211 | F3/F4/F5 |
| Power (W) | 15 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02D |
| Electric actuator series | TCR Series |
| Operating time (s) | 10.0 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 95-265 V AC/DC 20 | 024160 | S1005733 |
€310.46
(excl. btw)
|
add to cart |
| 24 V AC/DC 20 | 024161 | S1005734 |
€310.46
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 50 | 024360 | S1005735 |
€564.63
(excl. btw)
|
add to cart |
