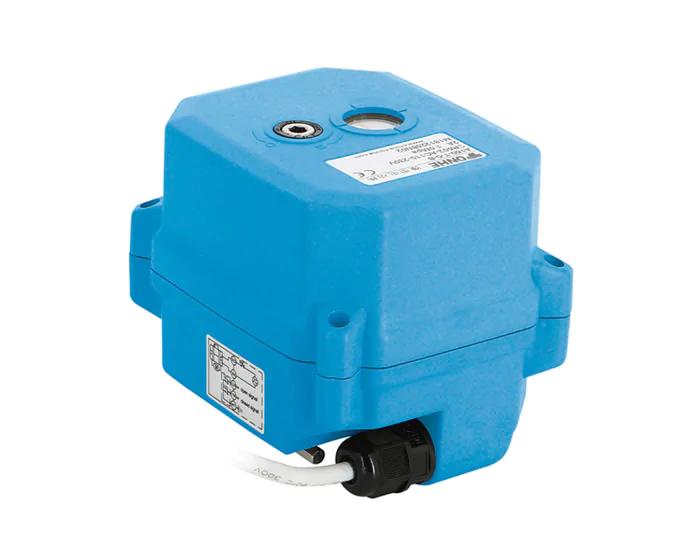

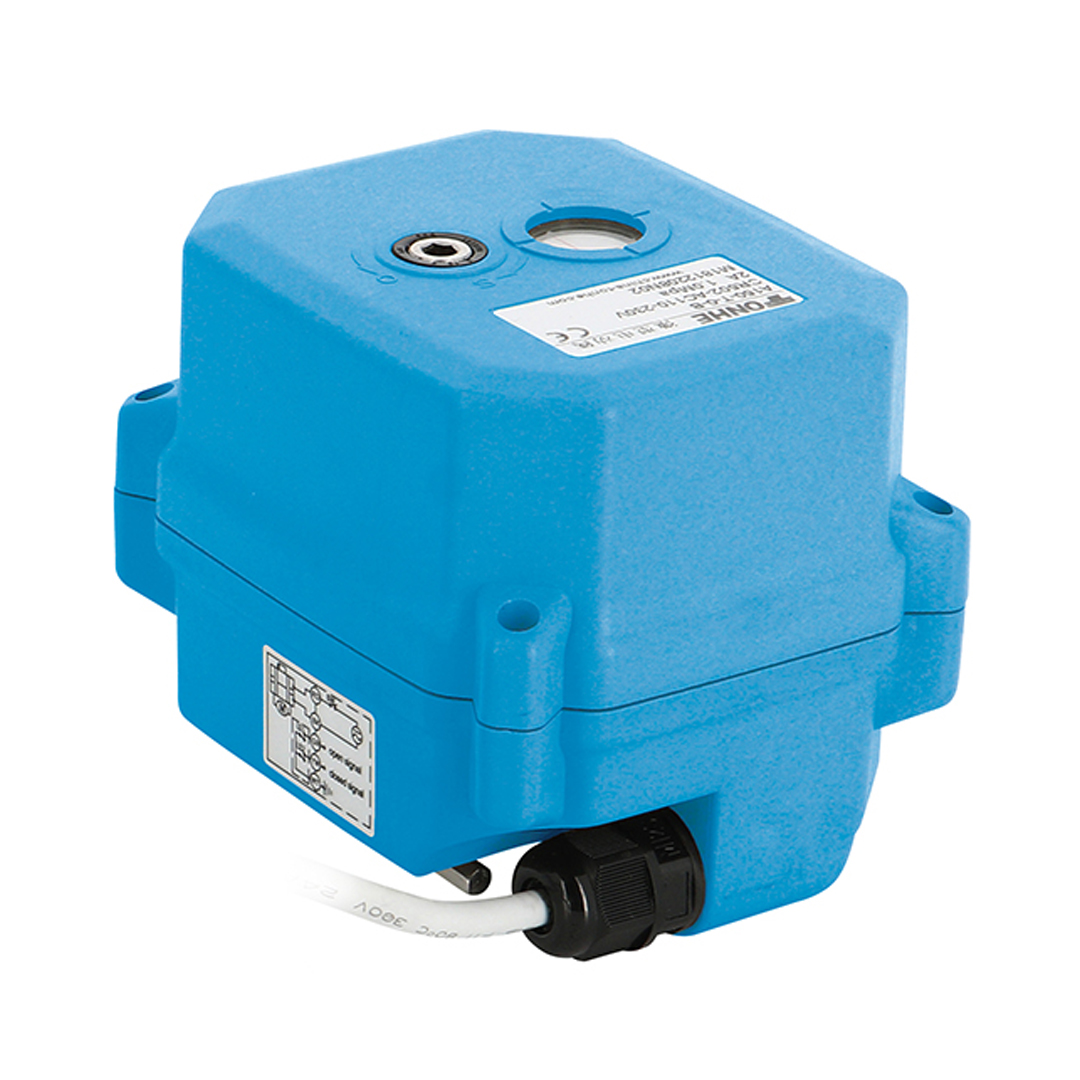

Electric actuator for 1/4 turn valve, very compact, 2-wire wiring, capacitor return. Torque 15 Nm. Plastic housing with IP67 protection.
Flanged ball valve with floating ball Body in stainless steel 1.4408 Ball in stainless steel A 351 Gr. CF8M Seats in PTFE Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200) Face to face: EN558-1 series 27 Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200) ISO mounting flange Fire safe according to ISO 10497 With pneumatic actuator double acting type AD - C4 coating - RAL6005 Pression de pilotage 5 bar Pilot pressure 5 bar Equipped with: Inductive proximity switches fig. SD33XX, type P&F NBN3-F31-E8-V18, 3 wire Nominal voltage: 10 ~ 30 V. Connection: V18-connector Solenoid valve fig. MNAM24 - 24 VDC, Namur connection for direct mounting
| Specification | Value |
|---|---|
| Square, star (mm) | 11 |
| Manual override | By key |
| Torque (Nm) | 15 |
| Declutchable | No |
| Duty service | S4 duty service - 30% |
| 3D indicator | No |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Indoor |
| ISO pad 5211 | F3/F5 |
| Power (W) | 30 |
| Anti-condensation heater | None |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | T 15 |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 50 |
| TS min (°C) | -15 |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC | 022500 | S1003847 |
€122.94
(excl. btw)
|
add to cart |
| 24 V AC/DC | 022501 | S1003848 |
€122.94
(excl. btw)
|
add to cart |
