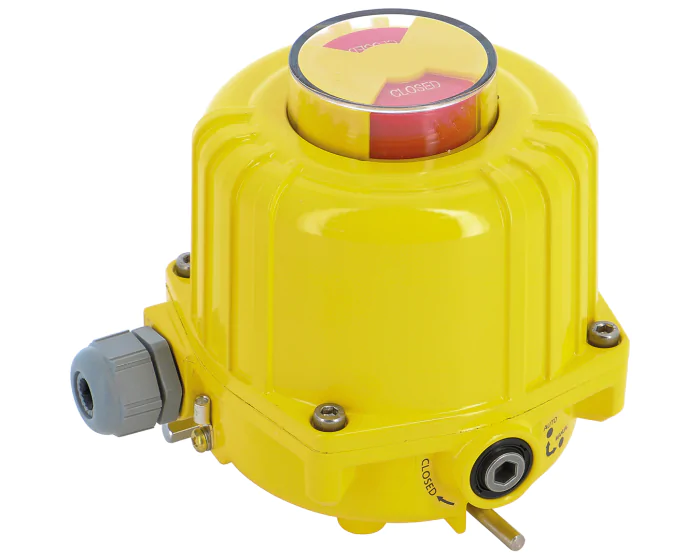

The Electric actuator 30 Nm for 1/4 turn valve with anti-condensation heater. Aluminium enclosure and cover with IP67 protection. Service S4 - 50%.
Flanged ball valve with floating ball and reduced bore Body in steel A216 Gr. WCB Ball in stainless steel A 351 Gr. CF8M Seats in PTFE Max. working pressure: 20 bar Face to face: ASME B16.10 short pattern Connection: flanged ANSI 150 Lbs ISO mounting flange Fire safe according to ISO 10497 With pneumatic actuator spring return type PE, spring to close, air to open Pilot pressure 5 bar
| Specification | Value |
|---|---|
| Square, star (mm) | 11 |
| Manual override | By key |
| Torque (Nm) | 30 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| ISO pad 5211 | F3/F5 |
| Power (W) | 18 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 03 |
| Electric actuator series | SA/NA series |
| Operating time (s) | 12 |
| Voltage | 230 V AC |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 230 V AC 30 12 | 023000 | S1004065 |
€235.50
(excl. btw)
|
add to cart |
| 24 V AC/DC 30 9 | 023001 | S1004066 |
€235.50
(excl. btw)
|
add to cart |
