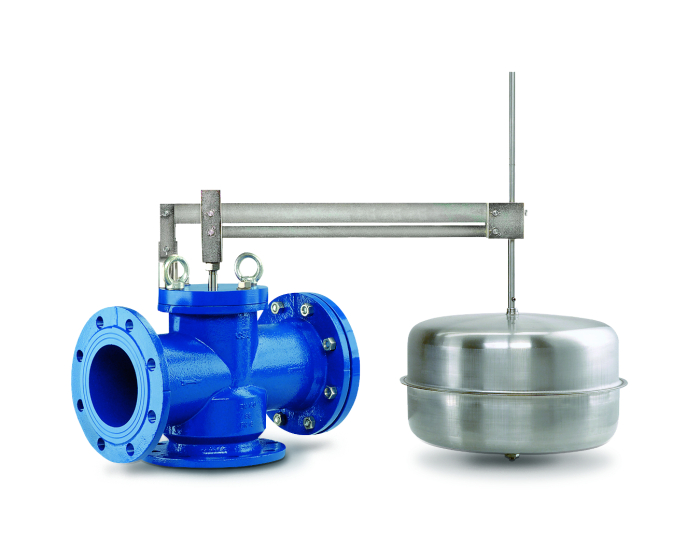

The 492 series float valve is from the CSA range. It is made of body in epoxy coated RAL 5005 cast iron GJS 450-10, bronze and stainless steel inner parts, galvanised steel lever, NBR gasket, stainless steel float and flanges RF PN10/16.
| Specification | Value |
|---|---|
| Construction standard | EN 1074-5 |
| EN face-to-face standard | EN 558 Series 1 |
| Application | Water supply and distribution network |
| ATEX compatible | No |
| DN | DN50 - 2'' |
| Face to Face (mm) | 230.0 |
| Fluid | Cold water / drinking water |
| Body material | Ductile iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | RAL5005 |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
| Float material | Stainless steel |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron DN50 - 2'' Flanged PN10/16 Stainless steel | 492050 | S1010643 |
€1,144.51
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN65 - 2''1/2 Flanged PN10/16 Stainless steel | 492065 | S1010644 |
€1,248.56
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN32 - 1''1/4 BSP F Polypropylene Drinking water quality | 492067 | S1010645 |
€443.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN40 - 1''1/2 BSP F Polypropylene Drinking water quality | 492068 | S1010646 |
€673.94
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN80 - 3'' Flanged PN10/16 Stainless steel | 492080 | S1010647 |
€1,734.11
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN100 - 4'' Flanged PN10/16 Stainless steel | 492100 | S1010648 |
€2,132.96
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN150 - 6'' Flanged PN10/16 Stainless steel | 492150 | S1010649 |
€3,814.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN32 - 1''1/4 BSP F Stainless steel | 492167 | S1010650 |
€627.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN40 - 1''1/2 BSP F Stainless steel | 492168 | S1010651 |
€858.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN200 - 8'' Flanged PN16 Stainless steel | 492200 | S1010652 |
€5,691.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN250 - 10'' Flanged PN16 Stainless steel | 492250 | S1010653 |
€8,343.60
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron DN300 - 12'' Flanged PN16 Stainless steel | 492300 | S1010654 |
€11,107.80
(excl. btw)
|
add to cart |
