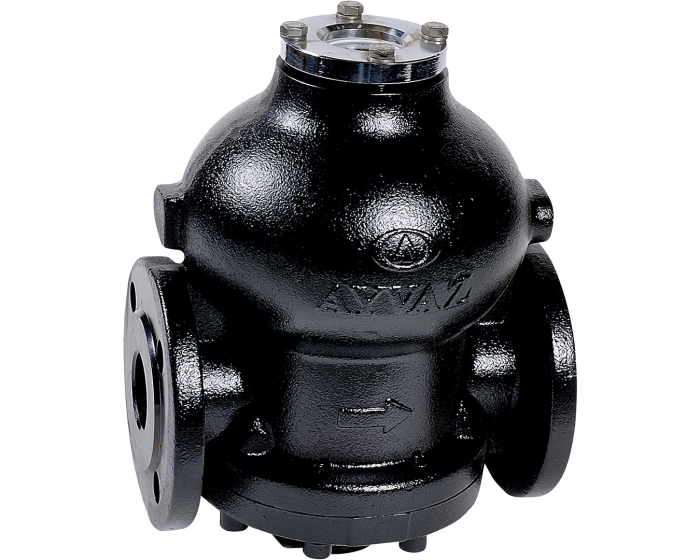

Automatic air vent with float, ductile iron body (EN-GJS-400-18), built-in thermostatic air vent, PS: 16 bar, TS: 250°C, flanged PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Delta P (bar) | 4.5 |
| DN | DN32 - 1''1/4 |
| Face to Face (mm) | 955.0 |
| Body material | Ductile iron |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| TS max (°C) | 250 |
| Trap type | With float |
| Warranty period | 1 year |
| CE | Risk category I |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Ductile iron DN32 - 1''1/4 4.5 | 151840 | S1013209 |
€637.30
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 10 | 151841 | S1013210 |
€637.30
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN32 - 1''1/4 14 | 151842 | S1013211 |
€637.30
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 4.5 | 151850 | S1013212 |
€637.30
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 10 | 151851 | S1013213 |
€637.30
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN40 - 1''1/2 14 | 151852 | S1013214 |
€637.30
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 4.5 | 151860 | S1013215 |
€806.86
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 10 | 151861 | S1013216 |
€806.86
(excl. btw)
|
add to cart |
| Flanged PN16 Ductile iron DN50 - 2'' 14 | 151862 | S1013217 |
€806.86
(excl. btw)
|
add to cart |
