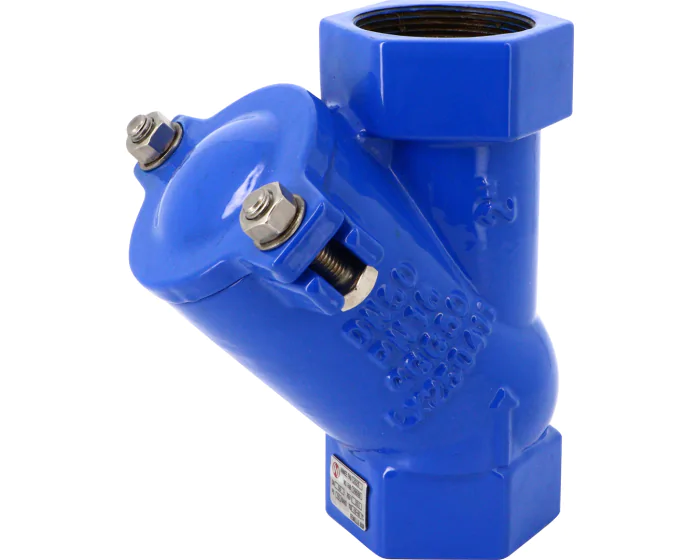

The 331 series ball check valve, in cast iron GJS-400-15, female / female BSP connection, inspection hatch for easy maintenance, stainless steel bolts and nuts for water networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1'' |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| Thread standard | ISO 228-1 |
| Tightness test standard | ISO 5208. Rate A |
| Closure member material | NBR |
| Application | Water supply and distribution network |
| DN | DN25 - 1'' |
| Face to Face (mm) | 141.0 |
| Fluid | Cold water |
| Gasket | NBR |
| Kv (m³/h) | 21.0 |
| Body material | Ductile iron |
| PS (bar) | 10 |
| Connections | BSP FF |
| Seats | Cast iron |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Obturator type | Ball |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Ductile iron Ball 1'' | 331006 | S1011115 |
€27.84
(excl. btw)
|
add to cart |
| BSP FF Ductile iron Ball 1''1/4 | 331007 | S1011116 |
€30.19
(excl. btw)
|
add to cart |
| BSP FF Ductile iron Ball 1''1/2 | 331008 | S1011117 |
€27.54
(excl. btw)
|
add to cart |
| BSP FF Ductile iron Ball 2'' | 331009 | S1011118 |
€35.46
(excl. btw)
|
add to cart |
| BSP FF Ductile iron Ball 2''1/2 | 331010 | S1011119 |
€50.77
(excl. btw)
|
add to cart |
| BSP FF Ductile iron Ball 3'' | 331011 | S1011120 |
€77.29
(excl. btw)
|
add to cart |
