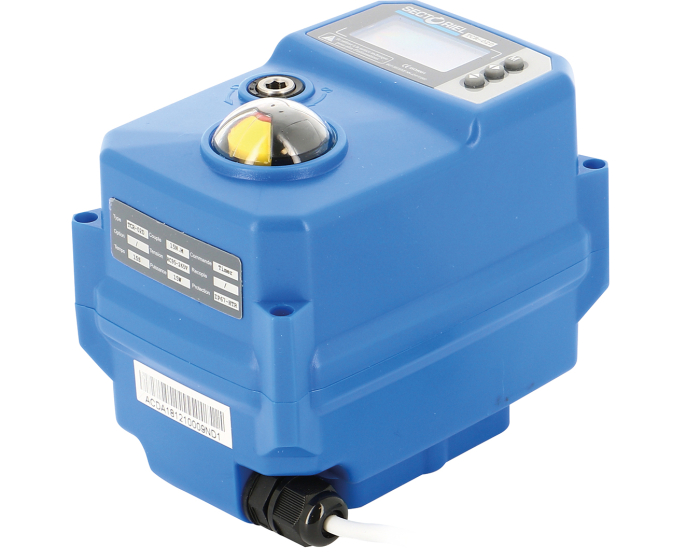

Clever electric actuator for quarter-turn valves, very compact and multi-voltage with regulated anti-condensation heater, parallel mounting possible. Torque from 20 to 90 Nm. ABS enclosure and cover with IP67 protection.
Two piece ball valve with floating ball and full bore Body in steel ASTM A105 Ball in stainless steel CF8M Stem in AISI 410 Seats in TFM Max. working pressure: 138 bar (1/8'' to 11/4''), 110 bar (11/2'' to 2'') Connection: NPT threaded With lever in anodized steel
| Specification | Value |
|---|---|
| Square, star (mm) | 11 |
| Manual override | By key |
| Torque (Nm) | 20 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| ISO pad 5211 | F3/F4/F5 |
| Power (W) | 15 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR-02C |
| Electric actuator series | TCR Series |
| Operating time (s) | 10.0 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 95-265 V AC/DC 20 | 024140 | S1005653 |
€266.70
(excl. btw)
|
add to cart |
| 24 V AC/DC 50 | 024141 | S1005654 |
€266.70
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 90 | 024640 | S1005655 |
€551.61
(excl. btw)
|
add to cart |
| 24 V AC/DC 90 | 024641 | S1005656 |
€551.61
(excl. btw)
|
add to cart |
