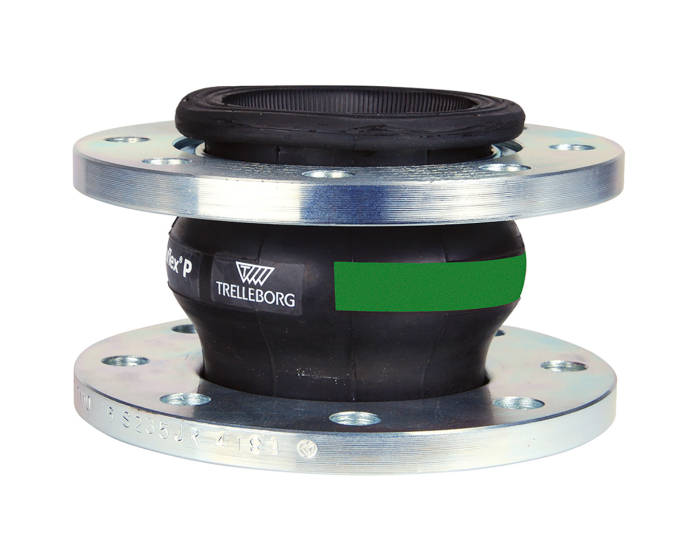

The expansion joint for industry Teguflex series 1564, green, CSM, with rotating flanges, carbon steel retaining ring, for strong and concentrated acids, compressed air and oil sprays.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/4 |
| CE risk category | III Module H |
| Brand | TRELLEBORG |
| Flange or fitting material | Zinc plated bichromate steel S235 |
| Application | Expansion/Vibration Noise absorption |
| DN | DN32 - 1''1/4 |
| Face to Face (mm) | 130.0 |
| Fluid | Acids |
| Body material | Hypalon |
| PS (bar) | 16 |
| Connections | With rotating flanges PN10/16 |
| TS max (°C) | 90 |
| TS min (°C) | -25 |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| With rotating flanges PN10/16 Hypalon DN32 - 1''1/4 | 1564032 | S1011584 |
€274.47
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN40 - 1''1/2 | 1564040 | S1011585 |
€290.71
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN50 - 2'' | 1564050 | S1011586 |
€309.50
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN65 - 2''1/2 | 1564065 | S1011587 |
€330.57
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN80 - 3'' | 1564080 | S1011588 |
€354.24
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN100 - 4'' | 1564100 | S1011589 |
€384.14
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN125 - 5'' | 1564125 | S1011590 |
€433.69
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN150 - 6'' | 1564150 | S1011591 |
€495.49
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN200 - 8'' | 1564200 | S1011592 |
€603.99
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN250 - 10'' | 1564250 | S1011593 |
€966.09
(excl. btw)
|
add to cart |
| With rotating flanges PN10/16 Hypalon DN300 - 12'' | 1564300 | S1011594 |
€1,046.60
(excl. btw)
|
add to cart |
