Name: Cast steel A216WCB Y-strainer 244 RF ANSI300 2''
SKU: 7495
Price: 206.38571428571 EUR
Availability: InStock

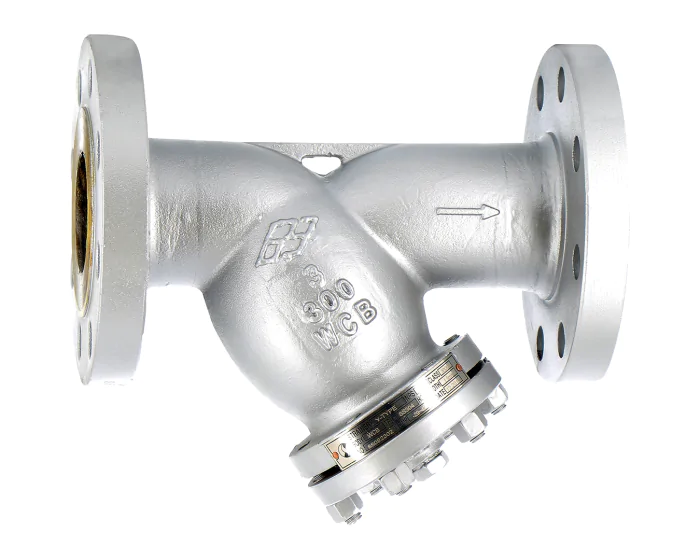

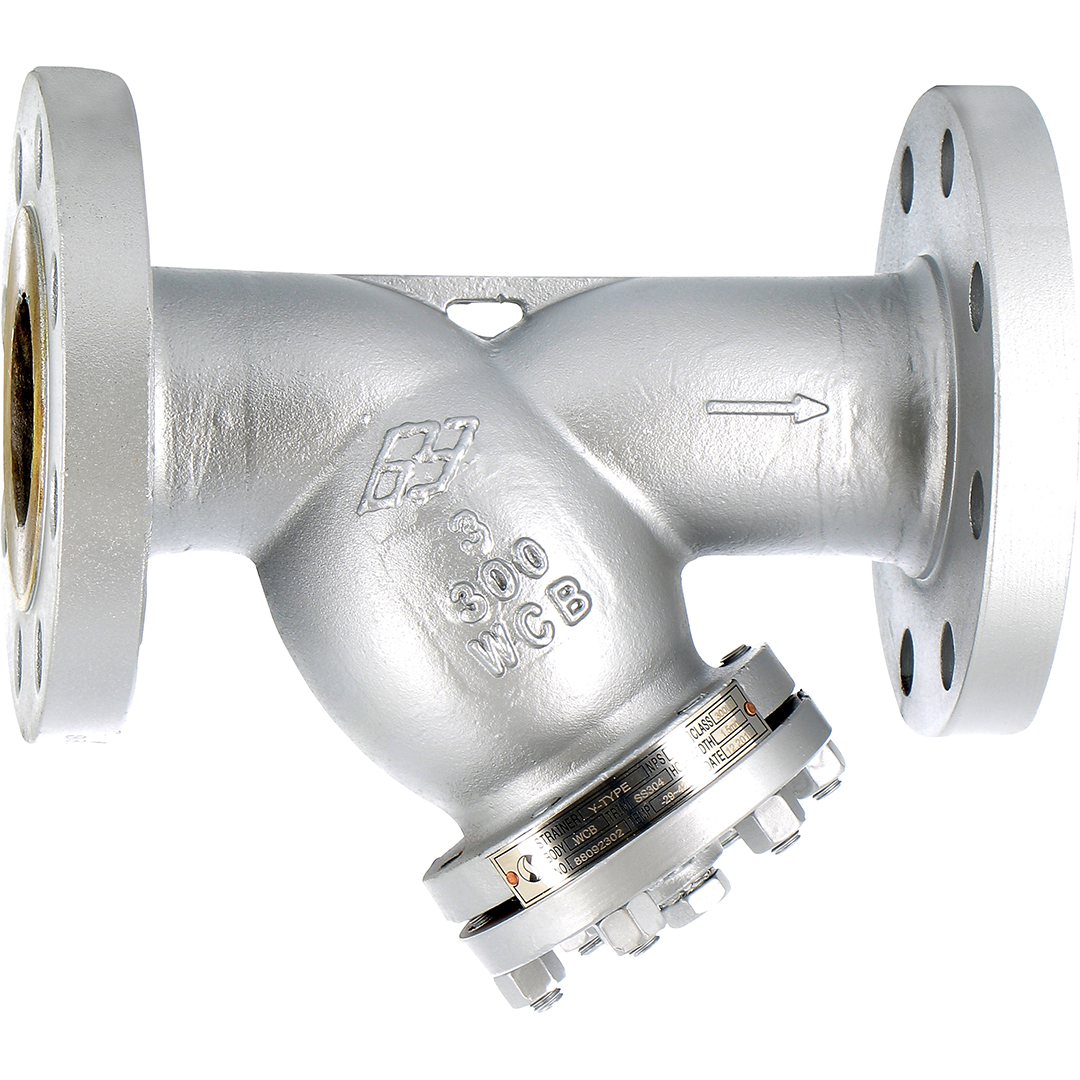

Cast steel A216WCB Y-strainer 244 RF ANSI300 2''

Cast steel A216WCB Y-strainer 244 RF ANSI300 2''

€206.39 (excl. btw)

The 244 series Y-strainer is TRIM 8, flanged Class 300 PN50, with removable stainless steel screen, bolted bonnet and NPT threaded drain plug. For water, diesel, steam, petrochemicals, oil and gas industries.

In stock Subject prior to sales
Categories : Filters

Documenten:

Certificate of conformity	Download
Manual	Download
Manual FR	Download
Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

What is the use of ANSI cast steel strainers? ANSI cast steel strainers are used to filter fluids that go through cast steel valves, typically in industries such as gas, petroleum and petrochemical industries, or steam, gas oil, and water systems. Here are the main specifications of our ANSI cast steel strainers: Stainless-steel filter is removable Models with RF class 150/ANSI 150 (PN20) flanges are available in 2" to 16" diameters Models with RF class 300/ANSI 300 (PN50) flanges are available in 2" to 12" diameters 1 mm mesh for DN50 (2"), 1.5 mm from DN65 to 400 (2,5" to 16") Bolted bonnet with NPT threaded draining cap, facilitating strainer cleaning RAL 7001 grey painting, 60 µm thickness These strainers can be mounted horizontally or vertically with descendant fluid (respecting the flow direction indicated by the arrow).It is also important to know that the ANSI cast steel strainers offered by Syveco withstand temperatures ranging from -29 °C to +425 °C, and a maximum pressure service of 20 bar for ANSI 150 and 50 bar for ANSI 300.

Specification	Value
DN inches NPS	2''
Bonnet material	Carbon steel ASTM A216 WCB
Mounting direction	Horizontal and vertical downwards
Construction standard	ASME B16.34
CE risk category	III Module H
NACE MR0175	Yes
Paint coating thickness (µm)	60.00
EN face-to-face standard	EN 558 Series 21
ASME face-to-face standard	ASME B16.10
Face to face standard	EN 558 Series 21. ASME B16.10
Accessories for flanges	Carbon steel
Tightness test standard	API 598
Bonnet	Bolted
Application	Industry
DN	DN50 - 2''
Face to Face (mm)	267.0
Fluid	Oxygen / Argon / Nitrogen
Gasket	Stainless steel AISI 304 + Graphite
Kv (m³/h)	32.4
Body material	Carbon steel A216 WCB (1.0619)
PS (bar)	50
Connections	Flanged #300 PN50
RAL (Paint)	7001
Screen (mesh)	10/10°
TS max (°C)	425
TS min (°C)	-29
CE	Yes
Filter design	Y

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
7496	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN50 - 2''	244050	S1007614	€206.39 (excl. btw)	add to cart
7497	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN80 - 3''	244080	S1007615	€412.31 (excl. btw)	add to cart
7498	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN100 - 4''	244100	S1007616	€522.66 (excl. btw)	add to cart
7499	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN150 - 6''	244150	S1007617	€1,003.53 (excl. btw)	add to cart
7500	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN200 - 8''	244200	S1007618	€1,512.26 (excl. btw)	add to cart
7501	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN250 - 10''	244250	S1007619	€2,713.20 (excl. btw)	add to cart
7502	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN300 - 12''	244300	S1007620	€3,824.76 (excl. btw)	add to cart
7503	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN350 - 14''	244350	S1007621	€4,855.11 (excl. btw)	add to cart
7504	Flanged #300 PN50 Carbon steel A216 WCB (1.0619) DN400 - 16''	244400	S1007622	€7,390.56 (excl. btw)	add to cart
