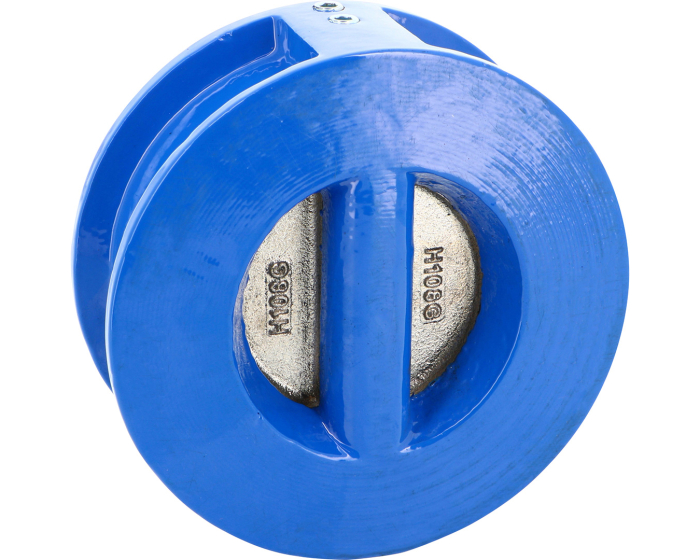

The 370 wafer swing check valve consists of a cast iron body, ductile iron dual plates and a NBR seat. It complies with EN 558 Series 50 face-to-face. It is suitable for heating, water supply, distribution and drainage systems.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| Construction standard | API 594 |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 series 50 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Nickel-plated cast iron |
| Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 43.0 |
| Fluid | Hot / Cold water |
| Gasket | NBR |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Seats | NBR |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| CE | Yes |
| Obturator type | Plate |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Cast iron Plate DN40 - 1''1/2 | 370040 | S1011010 |
€24.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN50 - 2'' | 370050 | S1011011 |
€24.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN65 - 2''1/2 | 370065 | S1011012 |
€26.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN80 - 3'' | 370080 | S1011013 |
€32.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN100 - 4'' | 370100 | S1011014 |
€41.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN125 - 5'' | 370125 | S1011015 |
€52.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN150 - 6'' | 370150 | S1011016 |
€72.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN200 - 8'' | 370200 | S1011017 |
€117.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN250 - 10'' | 370250 | S1011018 |
€165.36
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN300 - 12'' | 370300 | S1011019 |
€241.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN350 - 14'' | 370350 | S1011020 |
€475.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN400 - 16'' | 370400 | S1011021 |
€682.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN450 - 18'' | 370450 | S1011022 |
€940.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN500 - 20'' | 370500 | S1011023 |
€1,234.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron Plate DN600 - 24'' | 370600 | S1011024 |
€1,516.76
(excl. btw)
|
add to cart |
