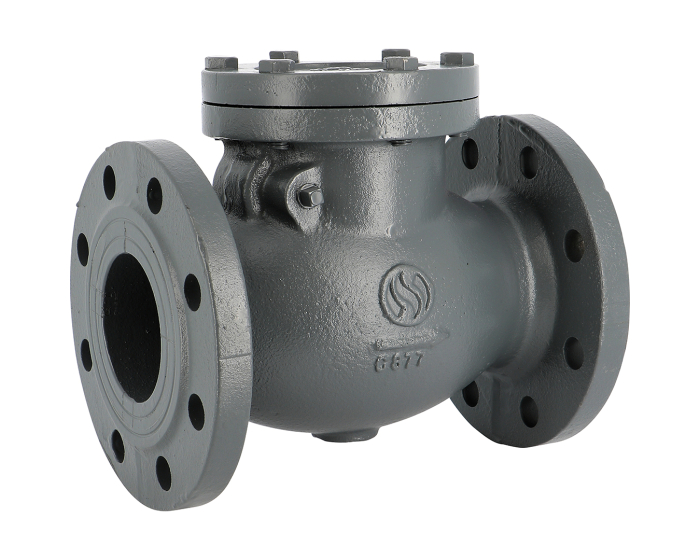

The 362 series swing check valve is made of cast iron, with flanges RF PN16, EPDM seat, bolted bonnet, suitable for heating, water supply, distribution and drainage systems.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| CE risk category | III Module H |
| EN face-to-face standard | EN 558 Series 48 |
| DIN face-to-face standard | DIN 3202 F6 |
| Tightness test standard | EN 12266-1. Rate A |
| Closure member material | Cast iron |
| Application | Water supply and distribution network |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 180.0 |
| Fluid | Hot / Cold water |
| Gasket | Graphite |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | EPDM |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| CE | No |
| Obturator type | Plate |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Plate DN40 - 1''1/2 | 362040 | S1010960 |
€82.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN50 - 2'' | 362050 | S1010961 |
€82.54
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN65 - 2''1/2 | 362065 | S1010962 |
€119.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN80 - 3'' | 362080 | S1010963 |
€134.99
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN100 - 4'' | 362100 | S1010964 |
€205.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN125 - 5'' | 362125 | S1010965 |
€272.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN150 - 6'' | 362150 | S1010966 |
€345.20
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN200 - 8'' | 362200 | S1010967 |
€646.14
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN250 - 10'' | 362250 | S1010968 |
€952.64
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Plate DN300 - 12'' | 362300 | S1010969 |
€1,659.64
(excl. btw)
|
add to cart |
