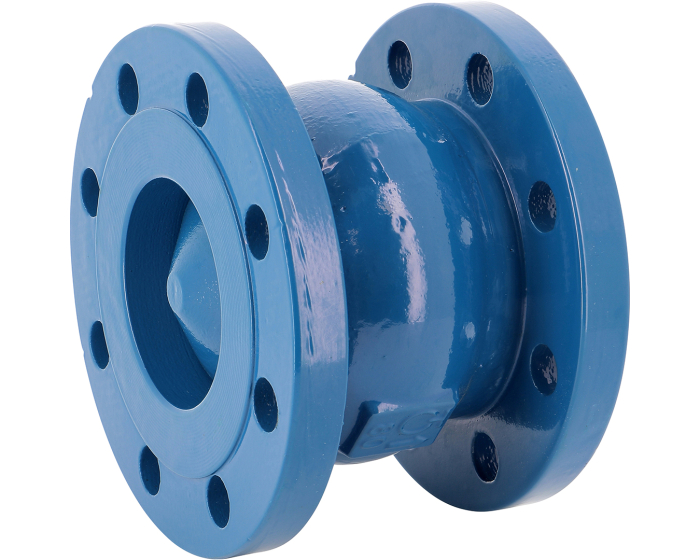

The 366 Sferaco Fonte Flanged single guide check valve can be installed in any position, with low head loss and quiet operation.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Mounting direction | All positions |
| Tightness test standard | ISO 5208. Rate A |
| Closure member material | Cast iron |
| Application | Water supply and distribution network |
| DN | DN50 - 2'' |
| Face to Face (mm) | 105.0 |
| Gasket | EPDM |
| Kv (m³/h) | 96.0 |
| PS (bar) | 16 |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Drinking water compatibility | Yes |
| Obturator type | Nozzle |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Nozzle DN50 - 2'' | 366050 | S1011103 |
€83.67
(excl. btw)
|
add to cart |
| Nozzle DN65 - 2''1/2 | 366065 | S1011104 |
€124.36
(excl. btw)
|
add to cart |
| Nozzle DN80 - 3'' | 366080 | S1011105 |
€156.01
(excl. btw)
|
add to cart |
| Nozzle DN100 - 4'' | 366100 | S1011106 |
€208.01
(excl. btw)
|
add to cart |
| Nozzle DN125 - 5'' | 366125 | S1011107 |
€307.50
(excl. btw)
|
add to cart |
| Nozzle DN150 - 6'' | 366150 | S1011108 |
€434.13
(excl. btw)
|
add to cart |
| Nozzle DN200 - 8'' | 366200 | S1011109 |
€667.01
(excl. btw)
|
add to cart |
| Nozzle DN250 - 10'' | 366250 | S1011110 |
€2,150.26
(excl. btw)
|
add to cart |
| Nozzle DN300 - 12'' | 366300 | S1011111 |
€2,857.97
(excl. btw)
|
add to cart |
