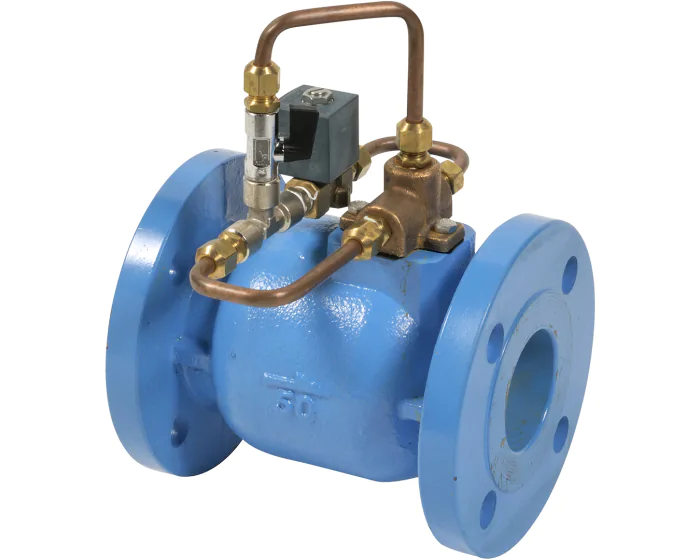

The flanged solenoid valve PN16 type EVB 82 is a high flow solenoid valve made of cast iron normally closed (NC) or normally open (NO).
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Minimum delta P (bar) | 0.30 |
| Coil type | B6 |
| Connector | T30 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 190.0 |
| Fluid | Water |
| Protection index (IP) | IP 65 |
| Gasket | NBR |
| Kv (m³/h) | 64.00 |
| Body material | Cast iron |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Cast iron DN50 - 2'' 230 V AC Normally closed | 082007 | S1005625 |
€851.60
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN50 - 2'' 230 V AC Normally open | 082007NO | S1005626 |
€867.51
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN65 - 2''1/2 230 V AC Normally closed | 082008 | S1005627 |
€932.14
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN65 - 2''1/2 230 V AC Normally open | 082008NO | S1005628 |
€948.06
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN80 - 3'' 230 V AC Normally closed | 082009 | S1005629 |
€1,133.43
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN80 - 3'' 230 V AC Normally open | 082009NO | S1005630 |
€1,149.34
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN100 - 4'' 230 V AC Normally closed | 082010 | S1005631 |
€1,470.50
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN100 - 4'' 230 V AC Normally open | 082010NO | S1005632 |
€1,486.40
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN125 - 5'' 230 V AC Normally closed | 082011 | S1005633 |
€2,146.06
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN125 - 5'' 230 V AC Normally open | 082011NO | S1005634 |
€2,161.97
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN150 - 6'' 230 V AC Normally closed | 082012 | S1005635 |
€2,861.54
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN150 - 6'' 230 V AC Normally open | 082012NO | S1005636 |
€2,877.46
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN200 - 8'' 230 V AC Normally closed | 082013 | S1005637 |
€6,422.64
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN200 - 8'' 230 V AC Normally open | 082013NO | S1005638 |
€6,438.56
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN50 - 2'' 24 V AC Normally closed | 082017 | S1005639 |
€851.60
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN50 - 2'' 24 V AC Normally open | 082017NO | S1005640 |
€867.51
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN65 - 2''1/2 24 V AC Normally closed | 082018 | S1005641 |
€932.14
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN65 - 2''1/2 24 V AC Normally open | 082018NO | S1005642 |
€948.06
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN80 - 3'' 24 V AC Normally closed | 082019 | S1005643 |
€1,133.43
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN80 - 3'' 24 V AC Normally open | 082019NO | S1005644 |
€1,149.34
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN100 - 4'' 24 V AC Normally closed | 082020 | S1005645 |
€1,470.50
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN100 - 4'' 24 V AC Normally open | 082020NO | S1005646 |
€1,486.40
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN125 - 5'' 24 V AC Normally closed | 082021 | S1005647 |
€2,146.06
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN125 - 5'' 24 V AC Normally open | 082021NO | S1005648 |
€2,161.97
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN150 - 6'' 24 V AC Normally closed | 082022 | S1005649 |
€2,861.54
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN150 - 6'' 24 V AC Normally open | 082022NO | S1005650 |
€2,877.46
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN200 - 8'' 24 V AC Normally closed | 082023 | S1005651 |
€6,422.64
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN200 - 8'' 24 V AC Normally open | 082023NO | S1005652 |
€6,438.56
(excl. btw)
|
add to cart |
