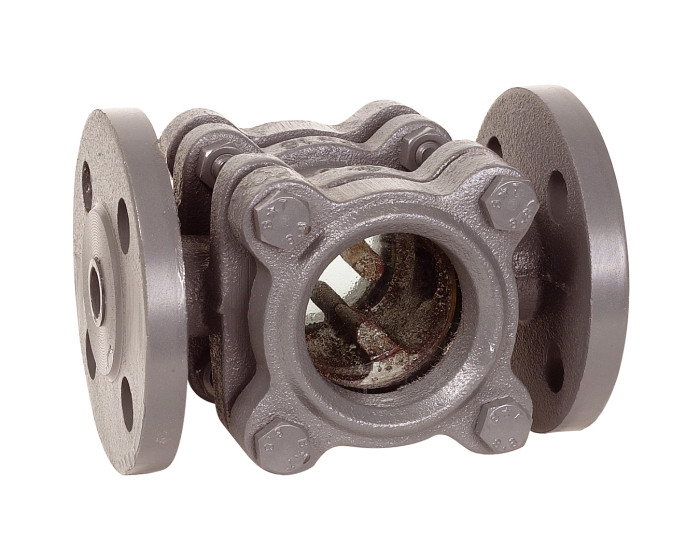

Cast iron GL body (EN-GJL-250) with internal static deflectors, PS: 16 bar, TS: 180°C, flanged PN16 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Gasket | Fibre x 2 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN16 |
| TS max (°C) | 180 |
| TS min (°C) | 5 |
| Sight glass type | With steady baffles |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Cast iron DN15 - 1/2'' | 2225015 | S1013502 |
€85.16
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN20 - 3/4'' | 2225020 | S1013503 |
€91.70
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN25 - 1'' | 2225025 | S1013504 |
€99.71
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN32 - 1''1/4 | 2225032 | S1013505 |
€121.34
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN40 - 1''1/2 | 2225040 | S1013506 |
€126.89
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN50 - 2'' | 2225050 | S1013507 |
€150.79
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN65 - 2''1/2 | 2225065 | S1013508 |
€260.67
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN80 - 3'' | 2225080 | S1013509 |
€283.41
(excl. btw)
|
add to cart |
| Flanged PN16 Cast iron DN100 - 4'' | 2225091 | S1013510 |
€482.74
(excl. btw)
|
add to cart |
