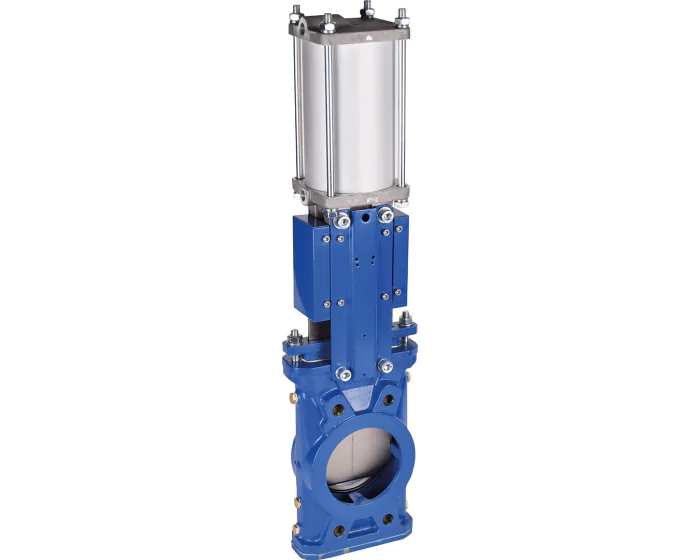

The 174 series unidirectional knife gate valves is made of cast iron GL body, NBR seat and a dismantling bottom. It is actuated with double acting pneumatic cylinder. Mounting between flanges PN10. PS: 10 bar, TS: -10/+90°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 410 |
| ATEX compatible | Yes |
| DN | DN150 - 6'' |
| Face to Face (mm) | 76.0 |
| Knife gate material | Stainless steel 304 |
| Body material | Cast iron |
| Packing gland | PTFE + NBR |
| PS (bar) | 2.5 |
| Connections | Between flanges PN10 |
| Seats | NBR |
| Surface temperature | TX |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Cast iron DN150 - 6'' | 442009035015 | S1001302 |
€790.30
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN200 - 8'' | 442010035016 | S1001303 |
€1,033.21
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN250 - 10'' | 442011035017 | S1001304 |
€1,603.93
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN300 - 12'' | 442012035018 | S1001305 |
€1,915.50
(excl. btw)
|
add to cart |
