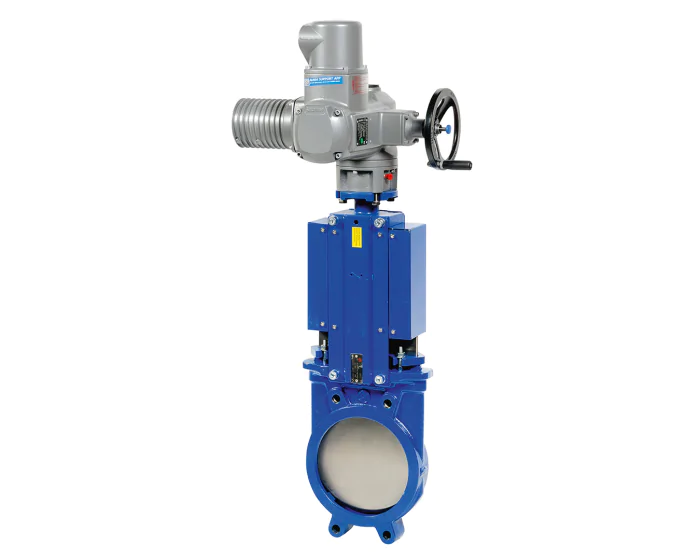

Knife valves with cast iron GL body, EPDM seat with electric actuator AUMA SA. PS: 10 bar - TS: 110°C. Unidirectional. Mounting between flanges PN10.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| DN | DN50 - 2'' |
| Duty service | S2 duty service - 15 min |
| Face to Face (mm) | 40.0 |
| Protection index (IP) | IP 68 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 304 |
| Body material | Cast iron |
| Packing gland | PTFE + EPDM |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SA07.2 |
| Electric actuator series | SA series (AUMA) |
| Seats | EPDM |
| Operating time (s) | 36.0 |
| Voltage | 3-400 V |
| TS max (°C) | 110 |
| TS min (°C) | 0 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Cast iron DN50 - 2'' 3-400 V | 441004027015 | S1004247 |
€3,176.46
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN65 - 2''1/2 3-400 V | 441005027015 | S1004248 |
€3,198.57
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN80 - 3'' 3-400 V | 441006027015 | S1004249 |
€3,203.61
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN100 - 4'' 3-400 V | 441007027015 | S1004250 |
€3,231.16
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN125 - 5'' 3-400 V | 441008027025 | S1004251 |
€3,827.11
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN150 - 6'' 3-400 V | 441009027025 | S1004252 |
€3,884.99
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN200 - 8'' 3-400 V | 441010027025 | S1004253 |
€4,138.66
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN250 - 10'' 3-400 V | 441011027025 | S1004254 |
€4,406.40
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN300 - 12'' 3-400 V | 441012027035 | S1004255 |
€5,446.80
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN350 - 14'' 3-400 V | 441013027035 | S1004256 |
€6,247.50
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN400 - 16'' 3-400 V | 441014027035 | S1004257 |
€6,609.60
(excl. btw)
|
add to cart |
