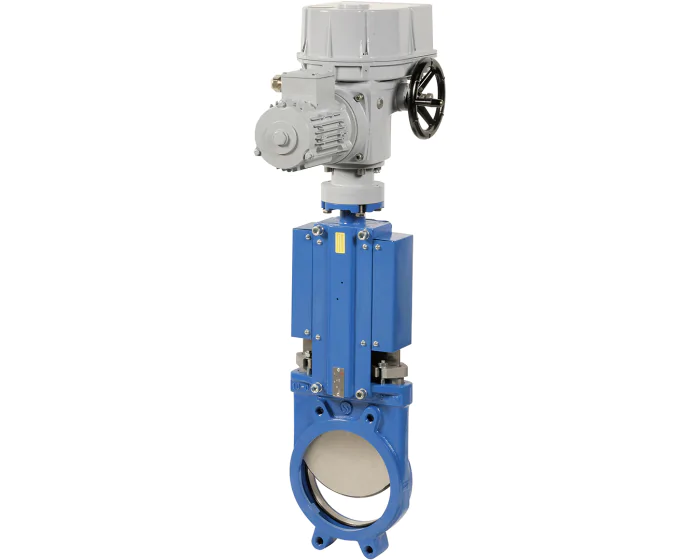

Knife valves with cast iron GL body, NBR seat with REGADA SO2/MO3 electric actuator. PS: 10 bar - TS: 90°C. Unidirectional. Mounting between flanges PN10.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Shaft/stem matérial | Stainless steel 303 |
| ATEX compatible | No |
| Manual override | By handwheel |
| DN | DN50 - 2'' |
| Duty service | S4 duty service - 25% |
| Face to Face (mm) | 40.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Knife gate material | Stainless steel 304 |
| Body material | Cast iron |
| Packing gland | PTFE + NBR |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Function | On-off |
| Electric actuator type | SO2 |
| Electric actuator series | SO/MO series (REGADA) |
| Seats | NBR |
| Operating time (s) | 39.0 |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category I |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10 Cast iron DN50 - 2'' | 440004027100 | S1003732 |
€2,959.99
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN65 - 2''1/2 | 440005027100 | S1003733 |
€2,982.09
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN80 - 3'' | 440006027100 | S1003734 |
€2,991.46
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN100 - 4'' | 440007027100 | S1003735 |
€3,014.64
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN125 - 5'' | 440008027100 | S1003736 |
€3,043.44
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN150 - 6'' | 440009027100 | S1003737 |
€3,101.30
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN200 - 8'' | 440010027150 | S1003738 |
€4,634.51
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN250 - 10'' | 440011027150 | S1003739 |
€4,778.17
(excl. btw)
|
add to cart |
| Between flanges PN10 Cast iron DN300 - 12'' | 440012027150 | S1003740 |
€5,061.33
(excl. btw)
|
add to cart |
