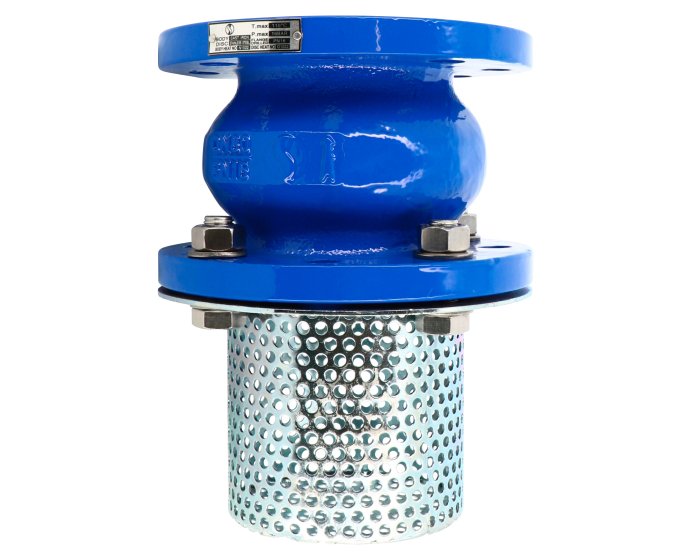

The single check valve series 368 in cast iron, flanged PN16 with galvanised steel strainer, all position valve, stainless steel ogive with spring, for water networks.
| Specification | Value |
|---|---|
| DN inches NPS | 2'' |
| Option certificate 3.1 | Yes |
| Mounting direction | Vertical |
| Tightness test standard | API 598. table 6 |
| Closure member material | Cast iron |
| Strainer basket material | Galvanised carbon steel |
| Application | Water supply and distribution network |
| DN | DN50 - 2'' |
| Face to Face (mm) | 100.0 |
| Fluid | Hot / Cold water |
| Gasket | EPDM |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | Cast iron |
| Screen (mesh) | 60/10° |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Obturator type | Nozzle |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Cast iron Nozzle DN50 - 2'' | 368050 | S1011149 |
€103.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN65 - 2''1/2 | 368065 | S1011150 |
€119.49
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN80 - 3'' | 368080 | S1011151 |
€153.84
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN100 - 4'' | 368100 | S1011152 |
€208.80
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN125 - 5'' | 368125 | S1011153 |
€271.69
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN150 - 6'' | 368150 | S1011154 |
€390.30
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN200 - 8'' | 368200 | S1011155 |
€664.54
(excl. btw)
|
add to cart |
| Flanged PN10/16 Cast iron Nozzle DN250 - 10'' | 368250 | S1011156 |
€1,010.91
(excl. btw)
|
add to cart |
