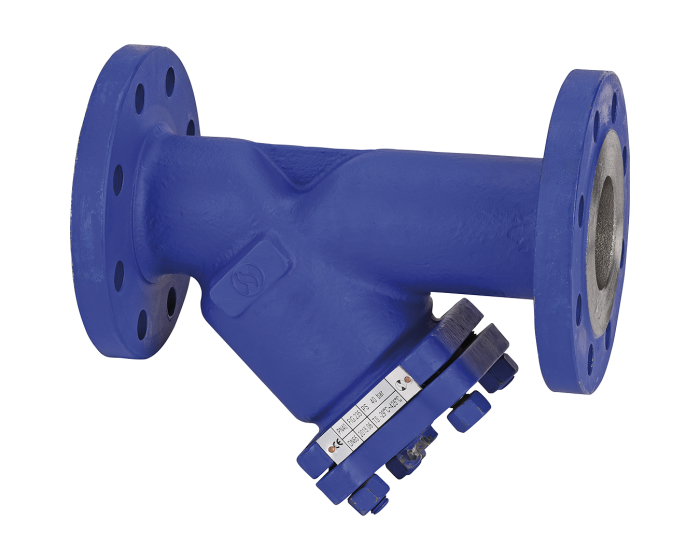

The 235 series Y-strainer is made of carbon steel, flanges PN40, stainless steel screen with removable strainer and bolted bonnet. For the filtration of high temperature fluids, hot water, steam, air, water treatment and irrigation.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| DN metric | 15/21 |
| Bonnet material | Carbon steel ASTM A216 WCB |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| Construction standard | DIN 3356 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 80.00 |
| EN face-to-face standard | EN 558 series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202-1 F1. NF 29354 |
| Flange type | RF |
| Accessories for flanges | Carbon steel A105 |
| Steam | Yes |
| Application | Industry |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Steam |
| Gasket | Stainless steel AISI 304 + Graphite |
| Kv (m³/h) | 6.2 |
| Body material | Carbon steel A216 WCB (1.0619) |
| PS (bar) | 40 |
| Connections | Flanged PN25/40 |
| RAL (Paint) | 5002 |
| Screen (mesh) | 10/10° |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Blue |
| Filter design | Y |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN15 - 1/2'' | 235015 | S1011287 |
€65.37
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN20 - 3/4'' | 235020 | S1011288 |
€69.44
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN25 - 1'' | 235025 | S1011289 |
€73.51
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN32 - 1''1/4 | 235032 | S1011290 |
€91.91
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 | 235040 | S1011291 |
€125.64
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN50 - 2'' | 235050 | S1011292 |
€153.19
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 | 235065 | S1011293 |
€211.87
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN80 - 3'' | 235080 | S1011294 |
€251.06
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN100 - 4'' | 235100 | S1011295 |
€375.84
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN125 - 5'' | 235125 | S1011296 |
€510.66
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN150 - 6'' | 235150 | S1011297 |
€755.77
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN200 - 8'' | 235200 | S1011298 |
€1,327.70
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN250 - 10'' | 235250 | S1011299 |
€2,532.87
(excl. btw)
|
add to cart |
| Flanged PN25/40 Carbon steel A216 WCB (1.0619) DN300 - 12'' | 235300 | S1011300 |
€3,063.94
(excl. btw)
|
add to cart |
