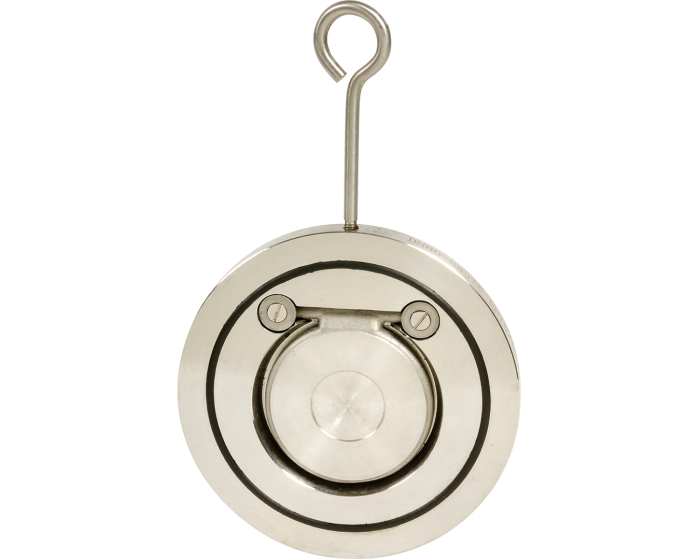

The 364 series is a wafer swing check valve with single plate, carbon steel body and plate, EPDM gasket, designed for small space requirement, for heating, water supply, distribution and drainage networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| Construction standard | API 594 |
| EN face-to-face standard | EN 558 series 97 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Zinc plated carbon steel |
| Hoisting eye | Yes |
| Application | Water supply and distribution network |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 85.0 |
| Fluid | Hot / Cold water |
| Gasket | EPDM |
| Body material | Carbon steel |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Seats | EPDM |
| TS max (°C) | 110 |
| TS min (°C) | -10 |
| Obturator type | Plate |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Carbon steel Plate DN40 - 1''1/2 | 364040 | S1010970 |
€22.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN50 - 2'' | 364050 | S1010971 |
€23.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN65 - 2''1/2 | 364065 | S1010972 |
€25.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN80 - 3'' | 364080 | S1010973 |
€29.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN100 - 4'' | 364100 | S1010974 |
€39.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN125 - 5'' | 364125 | S1010975 |
€55.30
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN150 - 6'' | 364150 | S1010976 |
€68.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN200 - 8'' | 364200 | S1010977 |
€109.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN250 - 10'' | 364250 | S1010978 |
€168.56
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN300 - 12'' | 364300 | S1010979 |
€279.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN350 - 14'' | 364350 | S1010980 |
€369.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN400 - 16'' | 364400 | S1010981 |
€537.41
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN450 - 18'' | 364450 | S1010982 |
€816.86
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN500 - 20'' | 364500 | S1010983 |
€1,074.81
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN600 - 24'' | 364600 | S1010984 |
€1,698.21
(excl. btw)
|
add to cart |
