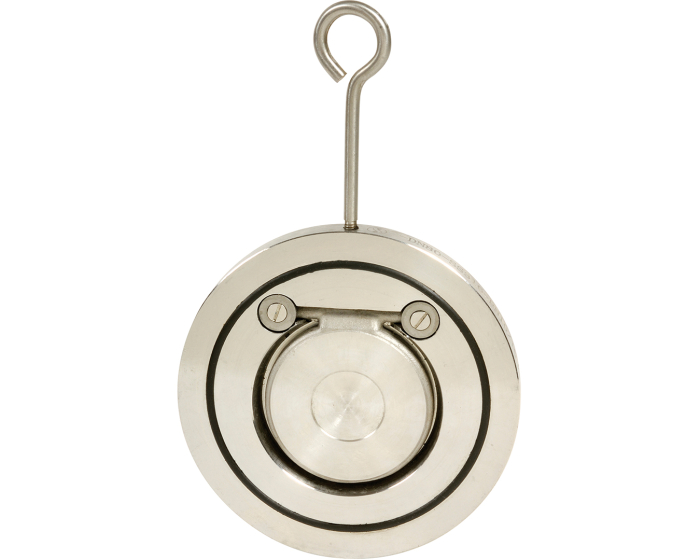

The 351 series is a wafer swing check valve with single plate, carbon steel body and plate, NBR gasket, designed for small space requirement, for heating, non-aromatic hydrocarbon, fuel oil, water, grease, oil and glycol networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| Construction standard | API 594 |
| EN face-to-face standard | EN 558 series 97 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Zinc plated carbon steel |
| Hoisting eye | Yes |
| Application | Water supply and distribution network |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 85.0 |
| Fluid | Hot / Cold water |
| Gasket | NBR |
| Body material | Carbon steel |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 |
| Seats | NBR |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Obturator type | Plate |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Carbon steel Plate DN40 - 1''1/2 | 351040 | S1010985 |
€24.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN50 - 2'' | 351050 | S1010986 |
€24.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN65 - 2''1/2 | 351065 | S1010987 |
€25.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN80 - 3'' | 351080 | S1010988 |
€30.10
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN100 - 4'' | 351100 | S1010989 |
€42.33
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN125 - 5'' | 351125 | S1010990 |
€55.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN150 - 6'' | 351150 | S1010991 |
€66.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN200 - 8'' | 351200 | S1010992 |
€111.77
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN250 - 10'' | 351250 | S1010993 |
€171.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Carbon steel Plate DN300 - 12'' | 351300 | S1010994 |
€279.24
(excl. btw)
|
add to cart |
