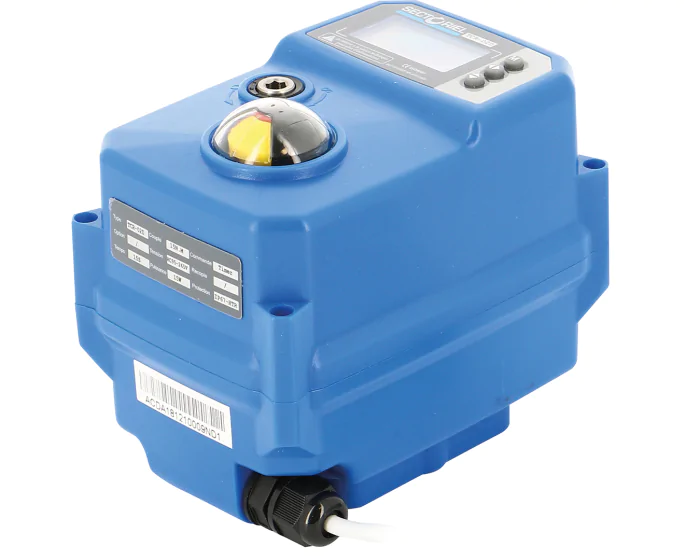

Brushless electric actuator for 1/4 turn valves, very compact and multi-voltage with regulated anti-condensation heater, parallel mounting possible. Torque from 15 to 200 Nm. ABS enclosure with IP67 protection. Capacitor return NC.
Wafer type butterfly valve Body in nodular iron GGG-50 Disc in stainless steel AISI 316 Seat in white EPDM Max. working pressure: 3 bar Face to face: ISO 5752 Connection: flange PN 10, PN 16 and ANSI 150 (DN 32 - DN 400); PN 10 (DN 450 - DN 1000) ISO mounting flange for direct mount With pneumatic actuator double acting type AD Equipped with: Switchbox Topworx TXP-M21GNPM Solenoid valve fig. MNAMXCNPTUL24 - 24 VUC, NPT, Atex II 2G/D - EExem II T5, with cable (3 m) - UL-Listed Knee stud Unifit with O-ring seal - 8 x 1/4'' (1x) Screw-in silencer - with body in plastic - diam. 1/4'' NPT (2x)
| Specification | Value |
|---|---|
| Square, star (mm) | 11 |
| Manual override | By key |
| Torque (Nm) | 15 |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| ISO pad 5211 | F3/F5 |
| Power (W) | 36 |
| Anti-condensation heater | Standard |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | TCR-02N-KT32 |
| Electric actuator series | TCR Series |
| Operating time (s) | 10.0 |
| Voltage | 95-265 V AC/DC |
| TS max (°C) | 60 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| 95-265 V AC/DC 15 | 024120 | S1005500 |
€270.84
(excl. btw)
|
add to cart |
| 24 V AC/DC 15 | 024121 | S1005501 |
€270.84
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 50 | 024320 | S1005502 |
€327.09
(excl. btw)
|
add to cart |
| 24 V AC/DC 50 | 024321 | S1005503 |
€327.09
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 90 | 024620 | S1005504 |
€450.03
(excl. btw)
|
add to cart |
| 24 V AC/DC 90 | 024621 | S1005505 |
€450.03
(excl. btw)
|
add to cart |
| 95-265 V AC/DC 200 | 024710 | S1005506 |
€1,051.01
(excl. btw)
|
add to cart |
| 24 V AC/DC 200 | 024711 | S1005507 |
€815.26
(excl. btw)
|
add to cart |
