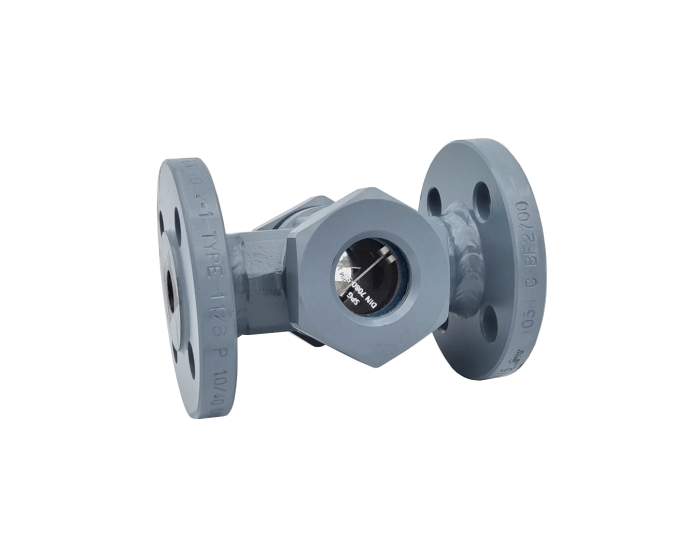

A 105 N steel body with internal static deflector, double borosilicate glass. PS: 40 bar up to DN20, 20 bar above - TS: 300°C. Flanged PN40 RF.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 130.0 |
| Fluid | Steam |
| Gasket | Fibre x 2 |
| Body material | Carbon steel A105 (1.0460) |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| TS max (°C) | 300 |
| TS min (°C) | -25 |
| Sight glass type | With steady baffles |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A105 (1.0460) DN15 - 1/2'' | 2235015 | S1013595 |
€325.06
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A105 (1.0460) DN20 - 3/4'' | 2235020 | S1013596 |
€341.91
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A105 (1.0460) DN25 - 1'' | 2235025 | S1013597 |
€428.59
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A105 (1.0460) DN32 - 1''1/4 | 2235032 | S1013598 |
€679.01
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A105 (1.0460) DN40 - 1''1/2 | 2235040 | S1013599 |
€698.29
(excl. btw)
|
add to cart |
