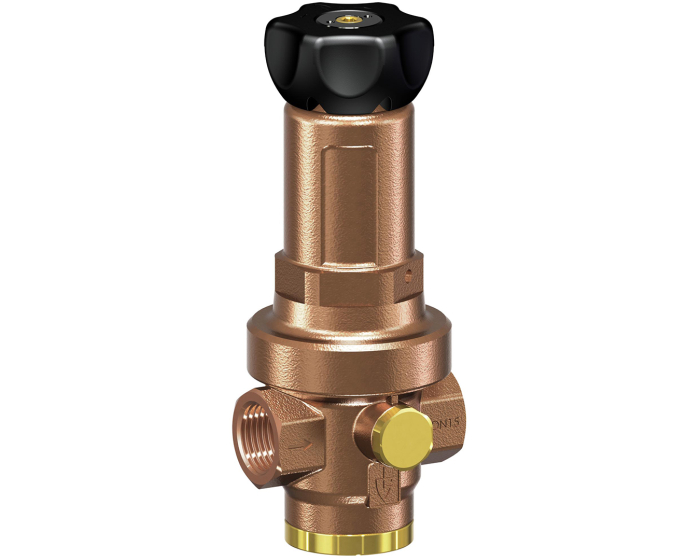

The pressure reducing valve type 684 HP made of bronze is designed for the pressure reducing function in high-pressure water or compressed air systems.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| ATEX compatible | No |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 275.0 |
| Sealing | FKM |
| Gasket | FKM |
| Kv (m³/h) | 1.60 |
| Body material | Bronze CC 499K |
| Downstream pressure range (bar) | 0.5 / 15 |
| PS (bar) | 60 |
| Connections | BSP FF |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Bronze CC 499K DN8 - 1/4'' 0.5 / 15 | 246900 | S1011895 |
€257.33
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN10 - 3/8'' 0.5 / 15 | 246901 | S1011896 |
€258.00
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 0.5 / 15 | 246902 | S1011897 |
€259.21
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 0.5 / 15 | 246903 | S1011898 |
€560.10
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 0.5 / 15 | 246904 | S1011899 |
€830.57
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN40 - 1''1/2 0.5 / 15 | 246905 | S1011900 |
€1,536.40
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN50 - 2'' 0.5 / 15 | 246906 | S1011901 |
€1,704.86
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN8 - 1/4'' 5 / 30 | 246920 | S1011902 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN10 - 3/8'' 5 / 30 | 246921 | S1011903 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 5 / 30 | 246922 | S1011904 |
€590.94
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 5 / 30 | 246923 | S1011905 |
€654.01
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 5 / 30 | 246924 | S1011906 |
€985.06
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN40 - 1''1/2 5 / 30 | 246925 | S1011907 |
€1,647.80
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN50 - 2'' 5 / 30 | 246926 | S1011908 |
€1,745.04
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN8 - 1/4'' 10 / 30 | 246940 | S1011909 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN10 - 3/8'' 10 / 30 | 246941 | S1011910 |
€556.91
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN15 - 1/2'' 10 / 50 | 246942 | S1011911 |
€590.94
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN20 - 3/4'' 10 / 50 | 246943 | S1011912 |
€654.01
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN25 - 1'' 10 / 50 | 246944 | S1011913 |
€985.06
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN40 - 1''1/2 10 / 50 | 246945 | S1011914 |
€1,647.80
(excl. btw)
|
add to cart |
| BSP FF Bronze CC 499K DN50 - 2'' 10 / 50 | 246946 | S1011915 |
€1,745.04
(excl. btw)
|
add to cart |
