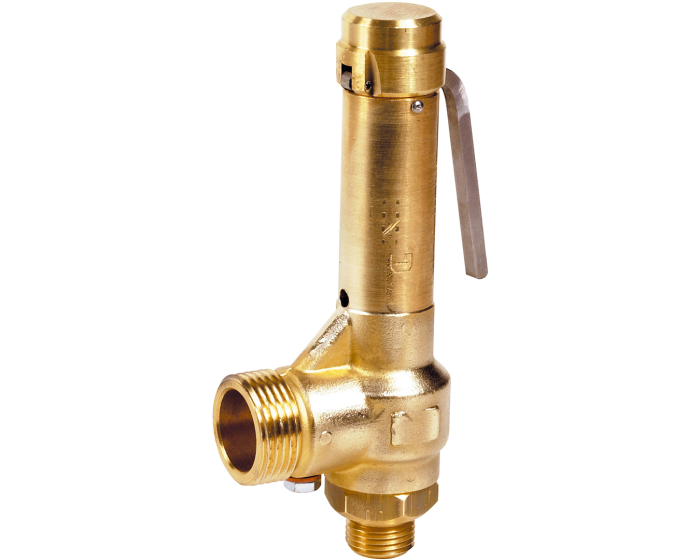

The 2851 Brass Steam Exhaust Valve is designed to protect installations against possible suppression. It operates automatically and closes when pressure conditions return to normal.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| ATEX compatible | No |
| Test device | by lever |
| DN (Input) | 1/2'' |
| DN (Output) | 1'' |
| Exhaust system | pipe outlet |
| Body material | Brass CW614N |
| Bearing | FFKM |
| Connections | BSP MM |
| Setting (bar) | 0.5 |
| Warranty period | 1 year |
| CE | Risk category IV |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MM Brass CW614N 1/2'' FFKM 0.5 | 28502005 | S1012603 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 1.1 | 28502011 | S1012604 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 1.5 | 28502015 | S1012605 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 1.6 | 28502016 | S1012606 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 2.5 | 28502025 | S1012607 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 3.5 | 28502035 | S1012608 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 4 | 28502040 | S1012609 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 4.5 | 28502045 | S1012610 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 5 | 28502050 | S1012611 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 6 | 28502060 | S1012612 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 6.5 | 28502065 | S1012613 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 6.8 | 28502068 | S1012614 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 7 | 28502070 | S1012615 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 7.5 | 28502075 | S1012616 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 7.8 | 28502078 | S1012617 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 8 | 28502080 | S1012618 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 8.5 | 28502085 | S1012619 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 9 | 28502090 | S1012620 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 9.5 | 28502095 | S1012621 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 10 | 28502100 | S1012622 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 10.5 | 28502105 | S1012623 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 11 | 28502110 | S1012624 |
€128.73
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 11.5 | 28502115 | S1012625 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 12 | 28502120 | S1012626 |
€144.80
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 12.5 | 28502125 | S1012627 |
€130.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 13 | 28502130 | S1012628 |
€130.83
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 13.5 | 28502135 | S1012629 |
€132.93
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 14 | 28502140 | S1012630 |
€132.93
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 14.5 | 28502145 | S1012631 |
€135.07
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N 1/2'' FFKM 15 | 28502150 | S1012632 |
€135.07
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 0.5 3/4'' | 28503005 | S1012633 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 1.1 3/4'' | 28503011 | S1012634 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 1.5 3/4'' | 28503015 | S1012635 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 2.5 3/4'' | 28503025 | S1012636 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3/4'' 3 | 28503030 | S1012637 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3.5 3/4'' | 28503035 | S1012638 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3/4'' 3.6 | 28503036 | S1012639 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 4 3/4'' | 28503040 | S1012640 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 4.5 3/4'' | 28503045 | S1012641 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 5 3/4'' | 28503050 | S1012642 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 6 3/4'' | 28503060 | S1012643 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 6.5 3/4'' | 28503065 | S1012644 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 7 3/4'' | 28503070 | S1012645 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 7.5 3/4'' | 28503075 | S1012646 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 8 3/4'' | 28503080 | S1012647 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 8.5 3/4'' | 28503085 | S1012648 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3/4'' 8.7 | 28503087 | S1012649 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 9 3/4'' | 28503090 | S1012650 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 9.5 3/4'' | 28503095 | S1012651 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 10 3/4'' | 28503100 | S1012652 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 10.5 3/4'' | 28503105 | S1012653 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 11 3/4'' | 28503110 | S1012654 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 11.5 3/4'' | 28503115 | S1012655 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 12 3/4'' | 28503120 | S1012656 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 13 3/4'' | 28503130 | S1012657 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 14 3/4'' | 28503140 | S1012658 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 15 3/4'' | 28503150 | S1012659 |
€179.81
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 1.5 1'' | 28504015 | S1012660 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 1'' 2 | 28504020 | S1012661 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3 1'' | 28504030 | S1012662 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3.5 1'' | 28504035 | S1012663 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 4 1'' | 28504040 | S1012664 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 4.5 1'' | 28504045 | S1012665 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 5 1'' | 28504050 | S1012666 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 6 1'' | 28504060 | S1012667 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 6.5 1'' | 28504065 | S1012668 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 7 1'' | 28504070 | S1012669 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 7.5 1'' | 28504075 | S1012670 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 8 1'' | 28504080 | S1012671 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 8.5 1'' | 28504085 | S1012672 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 9 1'' | 28504090 | S1012673 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 9.5 1'' | 28504095 | S1012674 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 10 1'' | 28504100 | S1012675 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 10.5 1'' | 28504105 | S1012676 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 11 1'' | 28504110 | S1012677 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 12 1'' | 28504120 | S1012678 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 12.5 1'' | 28504125 | S1012679 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 13 1'' | 28504130 | S1012680 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 14 1'' | 28504140 | S1012681 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 15 1'' | 28504150 | S1012682 |
€316.63
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 1''1/4 2.2 | 28505022 | S1012683 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3 1''1/4 | 28505030 | S1012684 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3.5 1''1/4 | 28505035 | S1012685 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 1''1/4 4.9 | 28505049 | S1012686 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 5 1''1/4 | 28505050 | S1012687 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 7 1''1/4 | 28505070 | S1012688 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 7.5 1''1/4 | 28505075 | S1012689 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 8.5 1''1/4 | 28505085 | S1012690 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 9 1''1/4 | 28505090 | S1012691 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 9.5 1''1/4 | 28505095 | S1012692 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 10 1''1/4 | 28505100 | S1012693 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 10.5 1''1/4 | 28505105 | S1012694 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 11 1''1/4 | 28505110 | S1012695 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 11.5 1''1/4 | 28505115 | S1012696 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 12 1''1/4 | 28505120 | S1012697 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 13 1''1/4 | 28505130 | S1012698 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 14 1''1/4 | 28505140 | S1012699 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 15 1''1/4 | 28505150 | S1012700 |
€352.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 2.5 1''1/2 | 28506025 | S1012701 |
€572.56
(excl. btw)
|
add to cart |
| BSP MM Brass CW614N FFKM 3 1''1/2 | 28506030 | S1012702 |
€572.56
(excl. btw)
|
add to cart |
