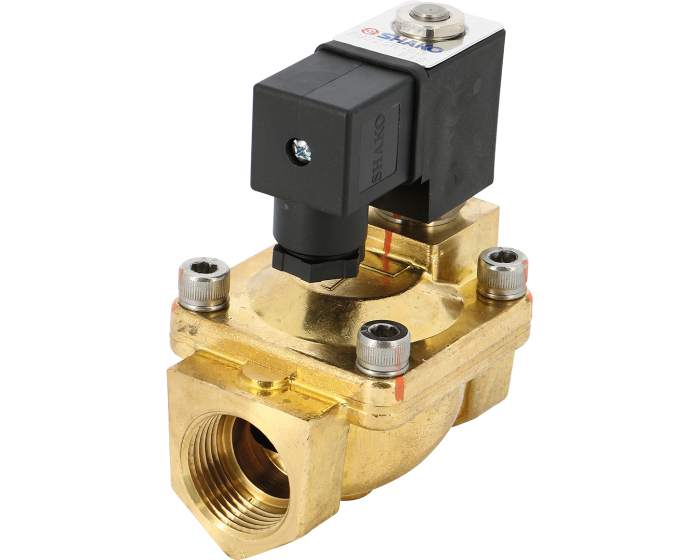

The solenoid valve type PU 225-H is a 25 bar 2/2-way normally closed (NC) servo-assisted brass solenoid valve, all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 66.0 |
| Protection index (IP) | IP 65 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally closed |
| PS (bar) | 25 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | 5 |
| Solenoid valve type | Servo-assisted |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 081502 | S1005464 |
€74.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 081503 | S1005465 |
€108.33
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 081504 | S1005466 |
€114.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 081512 | S1005467 |
€74.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 081513 | S1005468 |
€108.33
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 081514 | S1005469 |
€114.39
(excl. btw)
|
add to cart |
