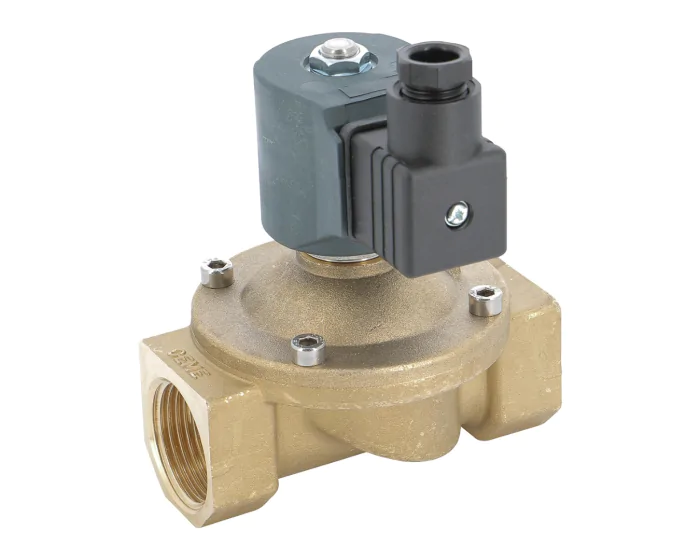

The solenoid valve type VSO 84 W is a normally closed (NC) 2/2-way direct acting brass solenoid valve suitable for drinking water (ACS approval), all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 5 |
| Minimum delta P (bar) | 0 |
| Coil type | B12 |
| Connector | T30 |
| DN | DN20 - 3/4'' |
| Face to Face (mm) | 100.0 |
| Fluid | Drinking water |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 5.50 |
| Body material | Brass CW617N |
| Membrane material | EPDM ACS |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 084503 | S1004572 |
€84.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 084504 | S1004573 |
€84.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 084513 | S1004574 |
€84.93
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 084514 | S1004575 |
€84.93
(excl. btw)
|
add to cart |
