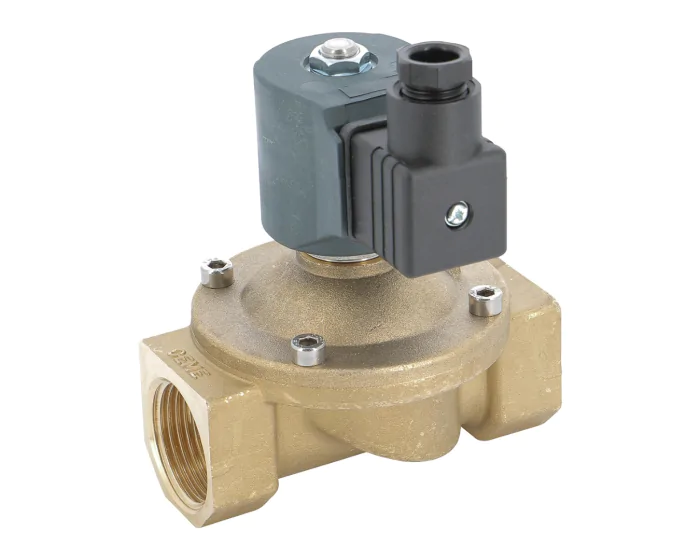

The solenoid valve type VSO 84 is a 2/2-way direct acting brass valve normally closed (NC), all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 5 |
| Minimum delta P (bar) | 0 |
| Coil type | B12 |
| Connector | T30 |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 61.0 |
| Fluid | Water / Air / Neutral gases |
| Protection index (IP) | IP 65 |
| Kv (m³/h) | 2.20 |
| Body material | Brass CW617N |
| Membrane material | NBR |
| Position | Normally closed |
| PS (bar) | 10 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 80 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N 230 V AC DN10 - 3/8'' | 084001 | S1004456 |
€64.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 230 V AC | 084002 | S1004457 |
€68.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 230 V AC | 084003 | S1004458 |
€80.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 230 V AC | 084004 | S1004459 |
€79.97
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 230 V AC | 084005 | S1004460 |
€329.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 230 V AC | 084006 | S1004461 |
€347.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 230 V AC | 084007 | S1004462 |
€416.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V AC DN10 - 3/8'' | 084011 | S1004463 |
€64.91
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V AC | 084012 | S1004464 |
€68.30
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V AC | 084013 | S1004465 |
€80.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V AC | 084014 | S1004466 |
€79.97
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V AC | 084015 | S1004467 |
€329.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V AC | 084016 | S1004468 |
€347.09
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V AC | 084017 | S1004469 |
€416.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 48 V AC | 084031N | S1004470 |
€64.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 48 V AC | 084032 | S1004471 |
€71.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 48 V AC | 084033 | S1004472 |
€79.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 48 V AC | 084034 | S1004473 |
€86.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 48 V AC | 084035N | S1004474 |
€318.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 48 V AC | 084036N | S1004475 |
€352.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 48 V AC | 084037N | S1004476 |
€460.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' 12 V DC | 084041N | S1004477 |
€64.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 12 V DC | 084042 | S1004478 |
€71.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 12 V DC | 084043 | S1004479 |
€79.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 12 V DC | 084044 | S1004480 |
€86.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 12 V DC | 084045N | S1004481 |
€318.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 12 V DC | 084046N | S1004482 |
€352.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 12 V DC | 084047N | S1004483 |
€460.31
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N 24 V DC DN10 - 3/8'' | 084051 | S1004484 |
€64.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' 24 V DC | 084052 | S1004485 |
€71.60
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' 24 V DC | 084053 | S1004486 |
€79.10
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' 24 V DC | 084054 | S1004487 |
€86.39
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 24 V DC | 084055 | S1004488 |
€318.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 24 V DC | 084056 | S1004489 |
€352.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' 24 V DC | 084057 | S1004490 |
€460.31
(excl. btw)
|
add to cart |
